AJA T-Tap Thunderbolt to SDI and HDMI Converter
Code: BLO/AJA-T-TAP
Get 10-bit SD, HD and 2K output from any Thunderboltâ„¢ enabled Mac or PC.
For purchasing information
Enquire Now
Get 10-bit SD, HD and 2K output from any Thunderbolt™ enabled Mac or PC.
10-bit, SD, HD and 2K output

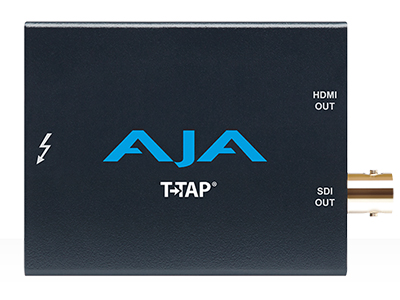

AJA's T-TAP® provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt™ to deliver high-quality 10-bit SD, HD and 2K video and embedded audio output from any compatible Mac or PC.
Thunderbolt connectivity
Simple to setup and use, T-TAP connects to your Mac or PC via the blazing-fast Thunderbolt™ connection which provides the bandwidth necessary for full broadcast-quality video and audio output.
Because T-TAP is powered via the Thunderbolt™ connection, there's no need for an additional power supply, minimizing cabling and maximizing portability.
Compact power
Smaller than a deck of playing cards, T-TAP offers broadcast-quality performance you can fit in the palm of your hand.
Extensive software support
AJA hardware is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same AJA device to be used by many different applications on the same system. In addition, AJA provides several free applications that enable you to utilize the power of your AJA hardware even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily.
Professional outputs
T-TAP features HD/SD SDI and HDMI outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer gear.
Embedded audio
It may be compact, but T-TAP doesn't compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1 - or even 7.1 mixes.
3D support
With full 3D support, T-TAP can output directly from the HDMI output to 3D HDMI monitors for stereoscopic review, without the need for any additional hardware.
Specifications
Video Formats |
(2K) 2048 x 1080PsF 23.98, 24, 25 (4:2:2)
(2K) 2048 x 1080p 23.98, 24, 25 (4:2:2)
(HD) 1080i 50, 59.94, 60
(HD) 1080PsF 23.98, 24
(HD) 1080p 23.98, 24, 25, 29.97, 30
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
|
Video Outputs Digital |
HD/SD-SDI, SMPTE-259/292/296
Single Link 4:2:2 (1x 1.5G BNC)
HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD
|
Audio Outputs Digital |
8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
|
Size (w x d x h) |
2.95" x 0.7" x 2.28" (74.93 x 17.78 x 57.92 mm)
|
Weight |
0.2 lb (0.1 kg)
|
Power |
5V Thunderbolt bus powered; 6.5W max
|
Environment |
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
|
