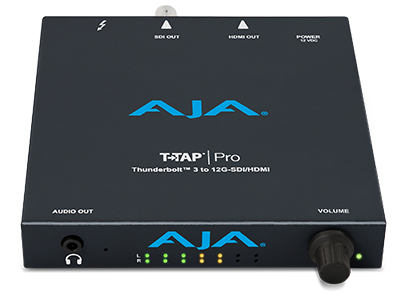

AJA T-Tap Pro Thunderbolt to 4K/HD SDI and HDMI Converter

Code: BLO/AJA-T-TAP-PRO

$2,020.00

T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when AJA T-Tap Pro Thunderbolt to 4K/HD SDI and HDMI Converter is back in stock.

Overview
Specifications

T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.

Key Features

12G-SDI and HDMI 2.0 connectivity for working with 4K or UltraHD over a single cable up to 60p
SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI and 270Mbit
4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p
1x 12G-SDI BNC with 16-channel embedded audio
1x HDMI 2.0 with 8-channel embedded audio
1x Thunderbolt 3 connector
Compact, silent, mobile form-factor with Front-panel Audio Levels Reference Display
RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
12-bit and 10-bit LUT support (.cube)
4K Closed Caption Support
VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
PQ, HLG, HDR10, HDR 10+ and Dolby Vision Support
HDR Metadata Auto Playback Detection
Includes support for the Apple M1 chip
Compatible with OBS Studio, Telestream Wirecast, Adobe Creative Suite, Apple FCP, Avid Media Composer, and many more
Headphone jack and quick access audio level control for mobile or live environments
Thunderbolt, Power and Bitfile Connection Status Indicators
Power Supply Included
3 Year Warranty

Specifications
Video Formats	(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25 (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1080i 50, 59.94, 60 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 _{Note: High Frame Rate and 4K/UltraHD capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes}
Video Outputs Digital	12G-SDI, SMPTE-2082, 12-bit, 10-bit 6G-SDI, SMPTE-2081, 10-bit 3G-SDI, SMPTE 425 RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit 1.5G-SDI, SMPTE 292M Single Link HD-SDI YCbCr 4:2:2 10-bit 270 Mbps SDI, SMPTE 259M-C YCbCr 4:2:2 10-bit, 8-bit HDMI v2.0 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component 4K, UltraHD, 2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit _{*Bit depth support is application dependent. Check with your software manufacturer for compatibility.}
HDR	SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3 HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G _{Note: HDR support is application dependent. Check with your software manufacturer for compatibility.}
Audio Outputs Digital	16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Outputs Analog	2-channel, 18-bit D/A analog audio, 48 kHz sample rate, unbalanced, using standard 3.5mm jack 1.2V RMS full scale digital output level (0 dBFS)
Size (w x d x h)	5.0" x 1.0" x 5.0" (127.0 x 25.4 x 127.0 mm)
Weight	.06 lb (0.23 kg)
Power	18W Max
Environment	Safe Operating Temperature: 0 to 35 C (32 to 95 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
