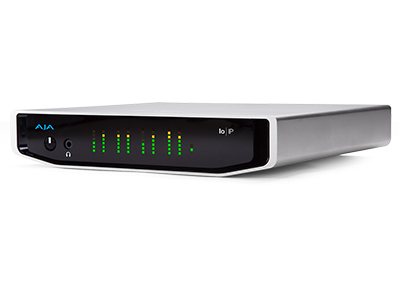

AJA Io IP

Code: BLO/AJA-IO-IP
Io IP is a portable Thunderbolt 3 ingest and playback device for professional HD video and audio over IP, bridging 10 GigE to the most popular creative software applications.

For purchasing information

Enquire Now

Io IP is a portable Thunderbolt 3 ingest and playback device for professional HD video and audio over IP, bridging 10 GigE to the most popular creative software applications.

Io IP has all the portable benefits of the Io family line with two Thunderbolt 3 ports for flexibility. It works with AJA's Control Room, Control Panel software and SDK tools, providing support for leading content creation applications, such as Adobe® Premiere® Pro, Apple® FCP X, Avid Media Composer®, FilmLight products and more.

Designed as a flexible platform with support for SMPTE ST 2110 or ST 2022-6/7 uncompressed IP video and audio, Io IP offers you the flexibility to keep current as the IP transition proceeds.

Transition Seamlessly

Broadcast IP is here. Transition seamlessly with Io IP.

Io IP is the latest member of the venerable Io portable I/O product line that professionals have come to know and rely on with tremendous Thunderbolt support for connecting to the latest Thunderbolt 3 over USB-C laptops and desktops available today.

Io IP is designed to provide you with the familiar Io experience you are used to for your current HD/SD workflows and seamlessly move you into the IP stream.

Io IP offers the latest SMPTE ST 2110 support as well as SMPTE 2022-6/7 uncompressed IP video standards with redundant signal reliability.

Standards Matter, Move Forward Together

Io IP supports SMPTE ST 2110 and SMPTE 2022-6/7 support while Io IP's extensible architecture ensures that as time moves on, you will be able to adapt and move safely ahead as Io IP offers firmware update capabilities common to all Io devices.

With Desktop Software v15.2, Io IP gains significant SMPTE ST 2110 support, including ST 2110-40 for ANC data for transmittal and reception of timecode, closed captioning and more.

Desktop Software v15.2 SMPTE ST 2110 Support includes:

  • 2110-10 (System Timing)
  • 2110-20 (Uncompressed video)
  • 2110-21 (Traffic shaping for Uncompressed Video)
  • 2110-30 (PCM Audio)
  • 2110-40 (Ancillary Data)

Broadcasters and facilities are now able to synchronize production of audio, video and ancillary data elements, eliminating the need for embedding/disembedding to/from SDI while also reducing latency.

AJA NMOS Application

AJA NMOS is an optional component within the AJA Desktop Software installer. When running, it enables NMOS based discovery, registration and control within software defined video networking environments, and resides in the system tray of your OS. Right clicking on the application provides access to log and status information and provides an option to exit if required.

If you choose to install AJA NMOS and during that dialog also choose to have the application autorun, then it will automatically start upon power up or reboot.

Universal Compatibility: Thunderbolt 3 via USB-C

Io IP provides two Thunderbolt 3 ports for true Thunderbolt flexibility.

Thunderbolt 3 doubles the speed of the previous Thunderbolt 2 standard with up to 40 Gps of throughput and utilizes the universal USB-C connection standard for true simplicity over a single cable and port for today's leading Mac and PC workstations and laptops, ideal for Video and Audio I/O as provided by the Io IP.

Thunderbolt 3 – Solutions from AJA

Bring more power, speed and simplicity to your workflows with Thunderbolt 3 solutions from AJA.

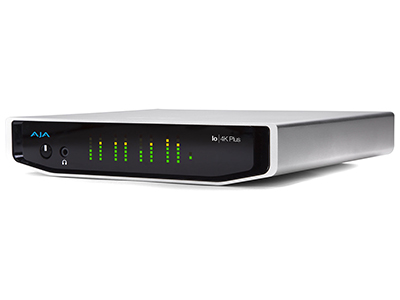

Learn how AJA’s Io 4K Plus and Io IP I/O devices give you the bandwidth to easily move 4K/UltraHD, High Frame Rate and deep color content over a single cable in and out of your computer, including HDR support across HDMI 2.0.

Throughput

Io IP has 2x 10 GigE SFP cages for multi-channel input and or output enabling effective reception, delivery or both. Mix and match based upon your project's needs with high quality uncompressed 4:4:4 or 4:2:2 HD/SD video and up to 16-Channel embedded audio.

Flexible Monitoring

IP makes distance a non-issue, now you can edit, playback and deliver from anywhere in the world that offers the bandwidth you need to tie into10 GigE IP infrastructure. Ingesting, editing or playing out remotely is the new normal.

Monitor locally with Io IP's HDMI 2.0 output with support for frame rates up to 60p and up to 8-Channels of embedded audio on cost effective HDMI displays wherever you are. Simultaneous 3G-SDI monitoring with up 16-Channels of embedded audio, is also available.

In addition Io IP supports 8-Channels of Analog Audio via a DB-25 connection (cable not included):

  • Balanced Analog Audio I/O:
    • Input across Ch 1-8, Ch 1-4, or Ch 5-8
    • Output across Ch 1-8, Ch 1-4, or Ch 5-8

Compatible

Your transition to IP pipelines with Io IP is supported by leading NLE, Compositing and Streaming applications via our industry best plug-ins, plus the AJA software tools you rely on including AJA Control Room and AJA Control Panel.

Io IP also includes a Downstream Keyer with support for graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte, perfect for the needs of live IP delivery.

HDR

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Io IP provides this support for HD HDR to HDMI compatible displays supporting HLG and HDR10 with HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3 and HD

Video Formats (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50*, 59.94*, 60*
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
*SMPTE ST 2110 only Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.
Media Transport Interfaces SMPTE ST 2110 (-10, -20, -21, -30, -40), 2022-6, 2022-7
    2x SFP+ Cages - SFPs not included

    Recommended 10 GigE SFP+ modules:
      Arista Networks SFP-10G-SR Compatible 10GBASE-SR
      Fiberstore SFP-10GSR-85 10G SFP+ 850nm
      Finisar FTLX1471D3BCL (for single mode 1310nm)
      Mellanox MFM1T02A-SR 850nm 10G

Video Input IP SMPTE ST 2110, 2022-6, 2022-7
    Single channel input for NLE applications*
    ANC support
    Up to 4-Channels input available for developers or very specific workflows
    Rx support for Narrow or Wide, Gapped or Linear Modes**

    *Capture and simultaneous monitoring is supported
    **SMPTE ST 2110 only
Video Output IP SMPTE ST 2110, 2022-6, 2022-7
    Single channel output for NLE applications*
    ANC support
    Up to 4-Channels output available for developers or very specific workflows
    Tx support for Narrow, Gapped Mode**

    *Capture and simultaneous monitoring is supported
    **SMPTE ST 2110 only
Video Output Digital HDMI v2.0
    30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
    2K/HD/SD
    HDR10 Support* - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
    HLG Support* - compatible with HDMI 2.0b/CTA-861-G

    *HDR support is application dependent. Check with your software manufacturer for compatibility. Note: Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Audio Input IP For NLE applications: Up to 16-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
For developers: 4x Up to 16-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Inputs Analog 8-Channel, 24 and 16-bit A/D analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 to 20 kHz frequency response
Input supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on the chosen configuration
Audio Output IP For NLE applications: Up to 16-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
For developers: 4x up to 16-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Digital 16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Outputs Analog 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 to 20 kHz frequency response
Output supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on the chosen configuration
Downstream Keyer Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
Reference and LTC I/O 1x BNC assignable to Reference video or LTC input
Reference Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
Reference input is terminated into 75 ohms when Genlock is set to Ref In
Applicable in SMPTE ST 2022-6/7 environments
Discovery, Registration and Control NMOS Tx/Rx support for SMPTE ST 2110 according to standards IS-04 v1.2 and IS-05 v1.0
Applicable in SMPTE ST 2110 environments
IP Clock PTP support compliant with PTP PTPv2 / IEEE 1588-2008
Applicable in SMPTE ST 2110 environments
Electrical Interface Thunderbolt 3 (2x)
Size (w x d x h) 8.74” x 8.11” x 1.65” (222.0 x 206.0 x 41.91 mm)
Weight 3.3 lbs (1.5 kg)
Power (Device Only) 10-20V, 33W typical, 38W max, 72W max with USB-C power delivery to external devices
Environment Safe Operating Temperature Range: 0 to 40C (32 F to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
