Sennheiser

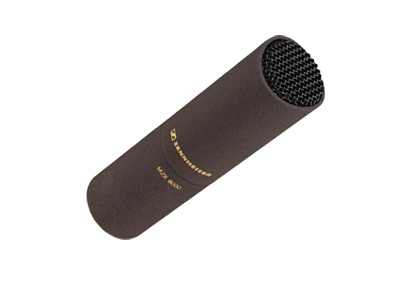

Sennheiser MKH 8020 Microphone

Item Code:

The omni-directional MKH 8020 is ideal for recording large and small sound sources, for a “Decca Tree” or for use in an OSS “Jecklin Disk” array.

RRP: 0   Save:

  • Qty:
  • Price:
    $1,345.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The omni-directional MKH 8020 is ideal for recording large and small sound sources, for a "Decca Tree" or for use in an OSS "Jecklin Disk" array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambience is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass.

Features

  • Onmi-directional pick-up pattern.
  • Modular design.
  • Wide frequency response 10 to 60.000 Hz.
  • Symmetrical transducer with 2 backplates providing extremly low distortion.
  • Extremly low inherent self-noise.
  • Accurate directional pattern.
  • Non reflective Nextel coating.
  • Ideal for stereo and surround recordings, as an M microphone and for ambience.

Kit Includes

  • Microphone head MKHC 8020.
  • XLR module MZX 8000.
  • Microphone clip MZQ 8000.
  • Windshield MZW 8000.
  • User manual.
  • Aluminium transport caser.

There is currently no media available for this item

Specifications

Transducer principle (Microphone)RF condenser microphone
Pick-up patternomni-directional
Frequency response10 Hz - 60 kHz
Sensitivity in free field, no load (1kHz)31 mV/Pa (- 30 dBV/Pa)
Nominal impedance25 Ohm
Min. terminating impedance1000 Ohm
Maximum sound pressure level (passiv)138 dB SPL
Equivalent noise level10 dB(A)
Equivalent noise level weighted as per CCIR 468-321 dB
Phantom powering48 V +/- 4V
Current consumption3,3 mA
Audio outputXLR-3M balanced, transformerless, floating
Dimensions19 mm diameter, lenght 74 mm (41 mm excluding XLR module)
Weight55g (25 g excluding XLR module)
