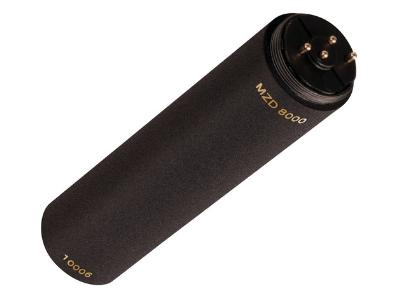

Sennheiser MZD 8000 Digital Microphone Module

Item Code: SYN/MZD8000

he MZD 8000 Digital Microphone Module by Sennheiser converts the audio signal of the MKH 8000 series microphones from analog to digital.

RRP: 0   Save:

  • Qty:
  • Price:
    $1,595.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The MZD 8000 digital module is optimally matched to the 8000 series microphones. It is simply screwed onto the microphone head in place of the XLR module, turning the analogue audio signal into a digital one. Since the converting takes place right behind the microphone head the clear, warm, and vivid sound of the microphones is completely preserved. With the MZD 8000 cable losses, interferences, and poor sound caused by badly matched A/D converters are history.

Features

  • 2-channel 24-bit A/D converter
  • Studio grade preamp and converter
  • Sampling rate 44,1 kHz, 48kHz, 88,2 kHz, 96 kHz, 176,4 kHz, and 192 kHz
  • Remote controlled DSP functions
  • Digital output in AES 42 format
  • External synchronization via AES 42, Mode 2
  • Color: Nextel® black, non reflecting, matching to MKH 8000 series

Specifications

Length 96 mm
Frequency response 10 Hz to 80 kHz
Weight 65 g
Diameter Ø 19 mm
Sensitivity -31 dBFS (MKH 8020)
Operating temperature -10 °C to 60°C
Power supply 10V DPP (AES 42-phantom power)
Current consumption <160mA
Operating voltage (mains) 7V… 10.5V
AD conversion 24 Bit / 44,1 - 192 kHz Delta-Sigma
Group delay time 22/ 19/ 15 samples (single/ double/ quad speed)
Harmonic distortion <-100 dBFS (at -1 dBFS)
Inherent self-noise <-120 dBFS (Mono Mode, 40 Ohm)
What's in the box Digital module MZD 8000
User manual
