RT Motion Lens Control System

Code:

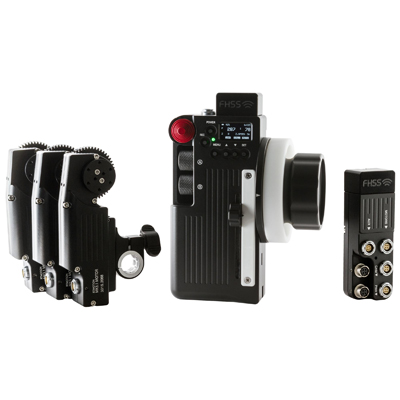

The RTMotion Lens Control System gives you solid, reliable, precision wireless control of cinema and still-camera lenses.

Main Features

  • Control multiple axes with controller
  • 3-Channel receiver
  • Customizable camera controls
  • Approx. 3000' range
  • Internal antennas lessen possibility of damage
  • Robust aluminum construction
  • Auto or manual (soft-stop) calibration

ENQUIRE NOW

Got a question about this product?
Send us a message

RENTAL INFORMATION

Have a look at our FAQs

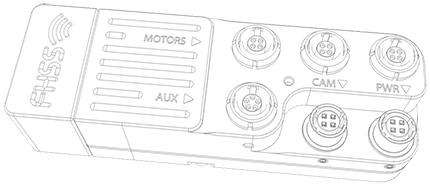

Receiver

  • World's smallest lens control Receiver- 100x32x23mm (inc. antenna cap), 118g.
  • Support for 3x Motors as standard.
  • Auxiliary port for 2x analogue inputs, trigger and digital serial communication.
  • Intelligent camera triggering circuitry: Run-stop support for ARRI, ALEXA, Red EPIC, Red ONE, Sony F55, Phantom Flex, LANC and Blackmagic.
  • 2x 1/4-20 UNC mount points.

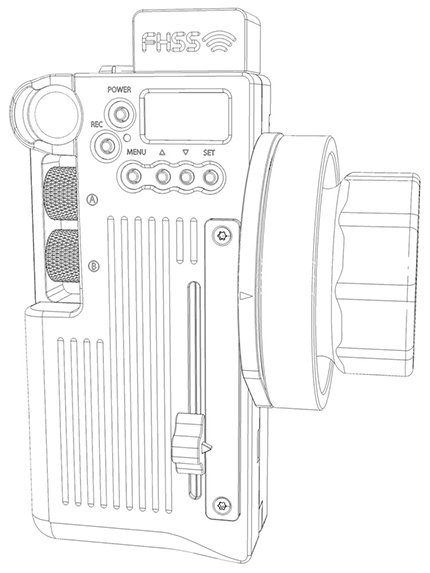

Controller

  • OLED screen with easy to use menu system.
  • Simultaneous control of all axis.
  • Fluid feel control knob (adjustable).
  • Low battery warning.
  • 42 selectable wireless channels.
  • Support for wired-mode operation, for when RF is not allowed (hospitals, etc).
  • Removable Canon LP-E6 battery with 36 continuous hours runtime.
  • Lanyard mounting point.
  • 3x 1/4-20 UNC mount points.

Motor(s)

  • Fast, accurate, quiet, powerful and smooth.
  • World's first brushless vector drive lens Motor - faster response, smoother, quieter, high resolution encoder, no cogging, no sparking, 4x the service life of brushed motors.
  • Strong, thin and flexible 3mm cables allow for reduced weight, less strain, and easier routing.
  • Support for 15mm/19mm rods, good height adjustment, full range of gears available.
  • Unique adjustable compensation for zero-backlash and perfect accuracy even on worn lenses.
  • Adjustable Motor response for silky smooth to quick and sharp moves.
  • Drive gear can be mounted on either side.
  • Lightweight and compact- 115mm x 40mm x 26mm, 212g,
  • 2.2Nm (max allowable torque).
