5.6” TV Logic HD-SDI/HDMI LCD

Code:

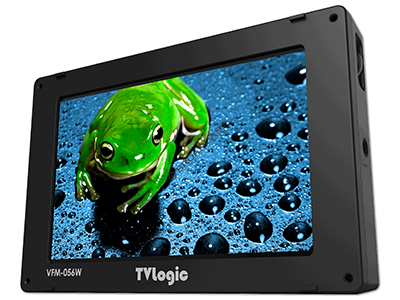

The TV Logic 5.6" is a super-lightweight yet sturdy monitor offering both HDMI and HD-SDI inputs. Features unique to the monitor include DSLR scaling (which compensates for the 5D's different image size via HDMI-out while recording), and a loop-through from HDMI to HD-SDI. The monitor also includes a Waveform/Vectorscope, False Colour Focus Assist, 1:1 Pixels and an exposure checker.

ENQUIRE NOW

Got a question about this product?
Send us a message

RENTAL INFORMATION

Have a look at our FAQs

Features:

Input

Output

  • Resolution 1280 X 800 (16 : 10)
  • Luminance 300cd/m2
  • Contrast Ratio 500:1
  • Colour Depth:16.7M
  • 1 X BNC 3G-SDI A Channel Input
  • 1 X HDMI HDMI Input
  • 3 x RCA Component Analogue Input
  • 1 x RCA Composite Analogue Input
  • 1 X BNC 3G-SDI Output

The TV Logic 5.6" is a super-lightweight yet sturdy monitor offering both HDMI and HD-SDI inputs. Features unique to the monitor include DSLR scaling (which compensates for the 5D's different image size via HDMI-out while recording), and a loop-through from HDMI to HD-SDI. The monitor also includes a Waveform/Vectorscope, False Colour Focus Assist, 1:1 Pixels and an exposure checker.
