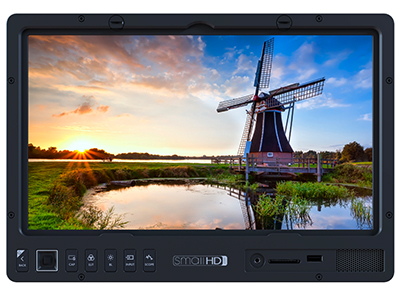

13" SmallHD 1303HDR Monitor

Code:
The Full HD 1303HDR monitor features HDR preview and calibration capabilities, 1500 NITs Brightness (for full daylight visibilty), a large brightness range, and 2x SDI, 1x HDMI inputs. Encased in a full aluminium construction, this monitor has been built to survive the rigors of production in studios and in the field.

The Full HD 1303HDR monitor features HDR preview and calibration capabilities, 1500 NITs Brightness (for full daylight visibilty), a large brightness range, and 2x SDI, 1x HDMI inputs. Encased in a full aluminium construction, this monitor has been built to survive the rigors of production in studios and in the field.

Key Features

  • Bright 1500 cd/m² Panel
  • 13", Full HD Display
  • SDI and HDMI Inputs
  • HDR Preview
  • Colorflow 3D LUT Processing
  • 10-Bit Color Intelligence Engine
  • Aluminum Construction

Specifications

Panel Type IPS
Size Diagonal 13
Resolution 1920x1080
Pixel Density (PPI) 170 PPI
Aspect Ratio 16:9
Active Area 11.59” x 6.52”
Brightness 1500 nits
Contrast 1140:1
Color Gamut 100% Rec.709
Color Depth 10­ bit
Viewing Angle 178 Deg.
Backlight Type LED
Adjustable Backlight Yes
Temperature Adaptive Color No

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI 480i29.97, 576i25
HDMI Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component Not Supported
Composite Not Supported
Audio HDMI & SDI ­ Monitor through Speakers in Front Bezel or through Headphone Jack ­ Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
HD-SDI YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
SD-SDI Not Supported
HDMI Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
Component Not Supported
Composite Not Supported
Audio Audio sent downstream unless a LUT is loaded on the output page which disables Audio out.

Connector Type

SDI 2x 3G Inputs, 2x 3G Outputs
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x Headphone Jack on Front of Monitor
Power In 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
Power Out 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
USB 1x Front USB2, 2x Rear USB2

Controls

Primary Control Interface Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.
Record/Capture Dedicated Image Capture Button on Front Bezel

Data I/O

Storage SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades
USB 1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading
Wifi

Power

Connector Type 1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max
Voltage 12 - 34VDC
Power Consumption 25 - 39W
Recommended Power Supply AC - DC Power Converter “Brick” Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT
Battery Types Gold Mount / V­Mount via 4­pin XLR Connector
Output Voltage (VDC) 12V, 2A max via LEMO Connector

Environmental

Compliance FCC, IC, CE, RoHS
Operating Temperature 32F ­- 100F
Storage Temperature 33F - 115F
Screen Protection Acrylic or Anti-Reflective Acrylic screen protetor available as an option
Height 9" (22.86cm)
Width 13" (33.02cm)
Depth/Length 2.88" (7.32cm)
Weight (Item Only without battery) 128oz (3628.74g)
Weight (Packaged) 12lb (5.44kg)
Mount Points 2x ¼”-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor

Software

Pixel Zoom (type) 2x & 4x Zoom with smooth pan via joystick
Frame Guides Yes: Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes: Underscan & Overscan
Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Yes - Automatic or Manual
Image Flip (Manual/Automatic) Yes - Automatic or Manual
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) Yes ­ User Adjustable Color and Intensity
Peaking Yes ­ User Adjustable Intensity
False Color Yes ­ Rainbow & Arri Style
Zebra Yes ­ Dual ­ User Configurable
Waveform Yes ­ Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes - with Optional Skintone line
RGB Parade Yes ­ Fully User Customizable
Histogram Yes ­ Luma & RGB Style
Image Capture Yes ­ With Dedicated Button
Custom LUTS Yes ­ Loadable by Page or as Systemwide Color Calibration
LUT Downstream Yes ­ Available on SDI 1 or HDMI Out
LUT Import Via SD Card or USB storage device
Image Overlay Yes with Intensity Slider and Blink Setting
Firmware User Upgradable. Compatible with 1303-1703-2403-3203 Firmware Version 1.1 and later
Audio Meters Yes ­ HDMI & SDI up to 8 channel
