Tilta Camera Cage for Sony A6

Code: TIL/E-T27

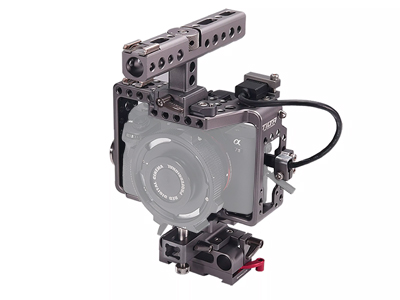

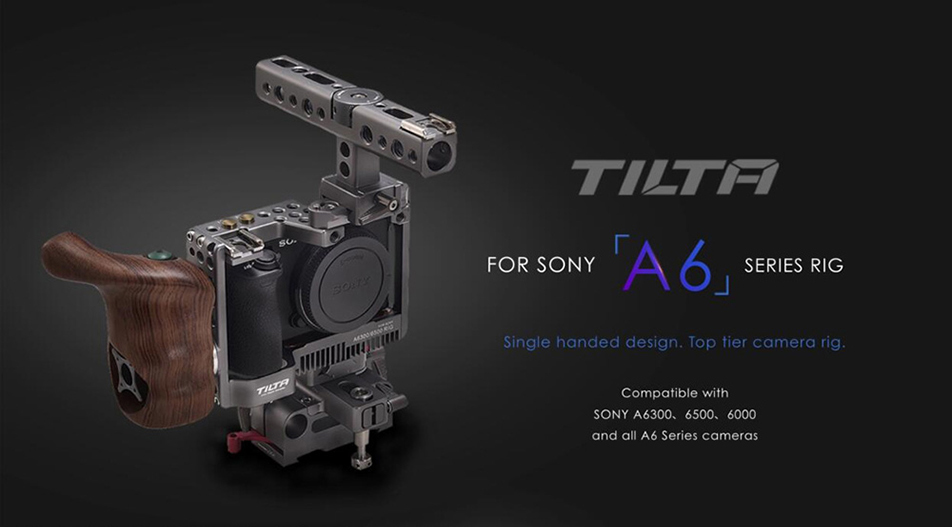

This versatile camera cage is designed for the Sony a6 series of cameras (a6000, a6300, a6500). It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories. It’s designed to fit around the camera’s hot shoe mount as well as the battery and side input/output compartments.

For purchasing information

Enquire Now

Overview
Specifications

What's In The Box?

1x Tilta Camera Cage for Sony a6 Series

1x Camera hex screw

1x NATO rail for top handle

1x Quick release top handle with finger-tightened screw

1x Sony a6 quick release plate

1x 15mm LWS baseplate + lens adapter support bracket

1x Built-in cooling fan with on/off switch

1x Elongated screw for Metabones EF lens adapters

1x Elongated screw for Metabones PL lens adapters

1x Top plate 15mm rod adapter

1x Micro HDMI plug protector

1x Standard HDMI plug protector

3x Allen keys

1x HDMI standard female to micro HDMI male cable

2x 15 x 300mm rods

1x Right Side Wooden Handle with R/S button (optional)

1x Run/stop cable for Sony a6 (optional)

A detachable top handle is included and features a cold-shoe mounting point (an additional cold shoe mount is on the top of the cage itself). This handle easily slides on and off of a small NATO rail that’s attached to the top of the cage.

On the bottom of the cage is a fan system with an on/off switch to help cool your camera if needed. Underneath the cooling system is a quick release plate that mounts to a 15mm LWS baseplate. This baseplate allows you to attach various accessories via 15mm rods and can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup. The baseplate also has a lens adapter support bracket built in to allow a way to mount various lens adapters (support screws for Metabones EF and PL mount adapters are included).
