SWIT S-4010 Power Station Box

Code: SWI/S-4010
$1,010.00
Providing long-lasting power solution for high draw devices, the S-4010 power station box holds 4 V-mount batteries in a portable and durable PP+ Fibre glass case Output:11-16.8 VDC, 2x 15 A (2 x 180 W)

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

Long-lasting power solution for high draw devices

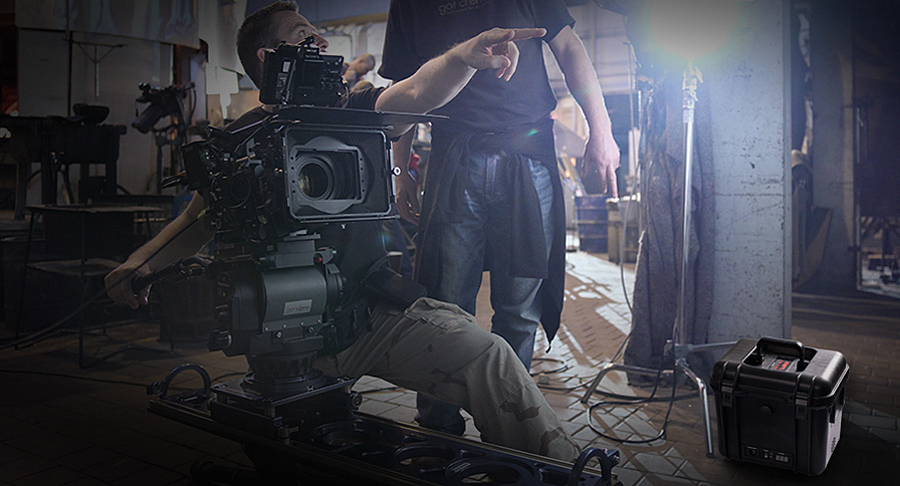

The S-4010 power station box can install 4 V-mount batteries to provide more power and longer power supply time compared to a single Li-ion battery, perfect for film, television and mobile studios.

 Auto-balanced circuit design

With auto-balanced circuit, S-4010 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output.

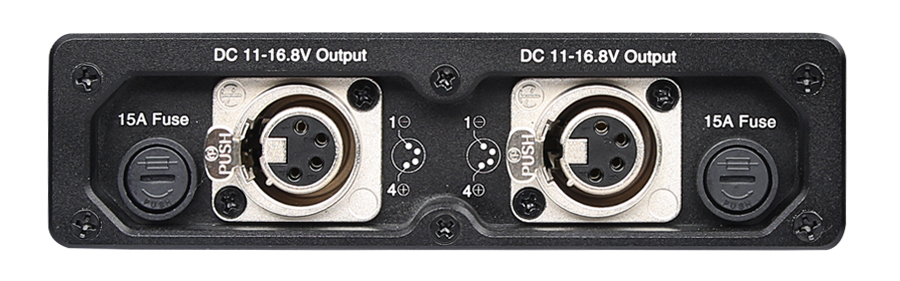

2-ch 4-pin XLR DC output

With 2-ch 4-pin XLR output sockets, S-4010 is capable of outputing 2-ch 11-16.8V, max 15A power simultaneously. And S-4010 is designed with multiple circuit protections, such as over load, over voltage etc.

Charging/discharging time

With 4 fully discharged 160wh batteries, S-4010 will take around 11.5 hours to fully charge these batteries with the supplied power adaptor. With 4 fully charged 160wh batteries, the S-4010 can power an 85W camera for around 7.5hours.

Power with 4 V-lock batteries, portable and usable

Considering the size, weight, power effeciency, and usability, S-4010 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find. The following SWIT V-mount batteries will fit in the box: S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.

Charging without taking out batteries

With the supplied 5A charger, you can charge batteries in the S-4010 directly, without taking them out.

Cooling fan design

The built-in fan dissipates heat from the box, making it safe when working in high temperature environment.

LED panel display status

With an LED panel, S-4010 can display real-time voltage. When battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batterie.

Specifications

Input DC 16.8V 5A (Charging)
Output

DC 11-16.8V 15Ax2(180Wx2)

Working temperature: 0°C~+40°C
Working humidity: 10%~90%
Storage temperature: -15℃~﹢60℃
Dimensions 290mm x 221mm x 278mm
Net weight 3.45Kg
