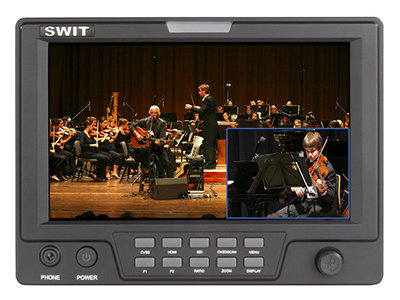

SWIT S-1071E LCD Monitor

Code: SWI/S-1071E
The SWIT S-1071E EFP field monitor is a 7" field LCD monitor with 1024 x 600 resolution, 900:1 contrast, and 160° horizontal/vertical viewing angles.

For purchasing information

Enquire Now

What's In The Box?

  • Swit S-1071E Monitor
  • Carry Case
  • Monitor Support Arm
  • Cold Shoe
  • Power Adapter
  • Sunhood
  • Screen Protection Film
  • Hdmi Cable
  • D-Tap To 4-Pin Xlr Cable.
  • The SWIT S-1071E EFP field monitor is a 7" field LCD monitor with 1024 x 600 resolution, 900:1 contrast, and 160° horizontal/vertical viewing angles.

    To simplify the cable connection, the EFP field monitor S-1071E provides a multi-functional DB-9 interface, which has centralized DC power input, CVBS input, picture-in-picture switch on/off and TALLY light controlling. In your build-up EFP system, you can use only one DB-9 cable to input everything, instead of the complex cable work.

    The S-1071E adopts a 7-inch LCD panel, 1024xRGBx600, H/V: 160/160 viewing angle and 1:900 contrast. The monitor provides a wide rage of professional features, including waveform, vector scope, RGB histogram, red/blue switchable peaking focus assist, 16-ch HDSDI audio meter, time code, false color, blue only, zebra, internal colorbar and so on.

    S-1071E accepts 2 HD/SD-SDI, 1 HDMI and 1 Composite video, and has 2 HD/SD-SDI loop through output, 1 HDMI loop through output.

    Key Features

    • 7-inch LCD, 1024x600
    • 2x HD/SD-SDI input and 2x loop output (BNC)
    • 1x HDMI input and 1x loop output
    • 1x CVBS input (BNC)
    • Under SDI input, PIP display another SDI or CVBS
    • Under HDMI input, PIP display another CVBS
    • HDCP content not supported
    • Overlay window position selection (4 corners or center)
    • Multi-functional DB-9 port
    • 2-ch SDI or HDMI embedded audio meter display
    • Waveform ¡§C Y/Cb/Cr, R/G/B, and full scale (SDI&HDMI)
    • Vector scope, R/G/B Histogram (SDI&HDMI)
    • SDI timecode display
    • Peaking focus assist (SDI&HDMI)
    • False color, Blue only, Zebra stripes (SDI&HDMI)
    • Underscan / Overscan, safety mark, Video flip

    Specifications

    LCD Performance
    Size 7 inches
    Display area 154x90mm
    Resolution 1024x600
    Aspect ratio 16:9 (4:3 adjustable)
    Brightness 400cd/m2
    Contrast 900:1
    Color 16.77 million colors
    Viewing angle Horizontal: 160° Vertical: 160°
    Input
    BNC x 2 HD/SD-SDI input
    BNC x 1 Composite input
    HDMI x 1 HDMI input
    Output
    BNC x 2 HD/SD-SDI loop output
    HDMI x 1 HDMI loop output
    3.5mm x 1 SDI and HDMI audio output
    Video Format
    CVBS NTSC / PAL
    SDI SMPTE-274M 1080i (60 / 59.94 / 50)
    1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M 720p (60 / 59.94 / 50)
    SMPTE-125M 480i (59.94)
    ITU-R BT.656 576i (50)
    HDMI 480i/ 576i / 480p / 576p
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    General
    Working voltage DC / battery 6.5V-17V
    Power consumption ≤15W
    Working temperature 0°C ~ +40°C
    Working humidity 10% ~ 90%
    Storage temperature -15°C ~ +60°C
    Storage humidity 10% ~ 90%
    Dimensions 192x139x47mm
    Net weight (main body) 550g
