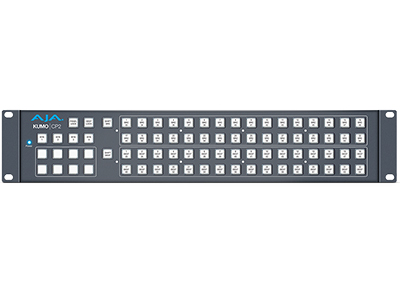

AJA KUMO CP 2 Control Panel

Code: BLO/AJA-KUMO-CP2
KUMO CP2 is a 2RU control panel that can be used in standalone or networked configurations suitable for all KUMO routers including the KUMO 6464. Connecting via Ethernet to the same network as KUMO routers, KUMO CP2 enables full control from any location without the need for a computer. Up to four KUMO routers can be controlled from a single control panel. Supports ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for Dual Link, 4K and Ultra HD workflows. In addition to HD and SD, every KUMO can route 2 or 4 grouped 3G-SDI connections, supporting uncompressed or RAW 4K and UltraHD signals.

For purchasing information

Enquire Now

KUMO CP2 is a 2RU control panel that can be used in standalone or networked configurations suitable for all KUMO routers including the KUMO 6464. Connecting via Ethernet to the same network as KUMO routers, KUMO CP2 enables full control from any location without the need for a computer. Up to four KUMO routers can be controlled from a single control panel. Supports ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for Dual Link, 4K and Ultra HD workflows. In addition to HD and SD, every KUMO can route 2 or 4 grouped 3G-SDI connections, supporting uncompressed or RAW 4K and UltraHD signals.

Buttoned Up

The destination-oriented KUMO CP2 Control Panel offers plug-and-play control of AJA’s complete line of compact KUMO SDI routers.

KUMO CP2 features 80 buttons and enables selection of up to 64 sources and 64 destinations on each of up to four KUMO routers in standalone mode or through a built-in GUI accessible from any web browser on the network.

This affordable control panel is only 1.3 inches deep, easy to install, eliminates the need to use a Shift key on KUMO 1604, 1616 and 3232, and is backed by a five-year warranty.

Salvos for simple source to destination mapping

New salvos support simplifies switching operations by recalling multiple sources to specific destinations. Salvos are stored in a KUMO router and can be recalled via the KUMO router’s Web UI, GVG Native Protocol over Ethernet, RS-232, and/or the AJA KUMO CP2 Salvos buttons.

Eight Salvos can be configured and stored in each KUMO router. Salvos allow the operator to quickly recall predefined sources to specific destinations configurations with a simple button press.

Remote Router Control

While KUMO routers can be controlled via the built-in web UI, connecting a KUMO CP2 to the network provides a familiar, computer-free solution for router control for all KUMO routers.

KUMO CP2's front panel interface is easily recognized and understood by video engineers, tape operators and editors and provides a fast, tactile interface that can stand up to the rigors of daily use.

Multi-Router Configuration

Utilizing its Ethernet network connection, KUMO CP2 can communicate with up to four KUMO routers anywhere on the network. This allows you to locate control panels exactly where they are needed for maximum accessibility.

Simple Installation and Configuration

For standalone configurations with KUMO CP2, all KUMO routers can be connected together directly using standard RJ45 cables or a network switch, if required. KUMO software will automatically detect and assign routers to control panel delegations so your routing system is ready for use immediately.

In a network environment, the built-in web UI provides all the setup controls to create exactly the configuration you require.

Custom Button Labels

Customize KUMO CP2 buttons exactly to your needs. Use text labels and colored inserts to identify various sources, destinations and routers for quick and easy operation. To get you started, you can download a lens chip template which can be color-printed and cut to create an insert for each button on the KUMO CP2.

Light-gauge paper or film will be illuminated by the button for easy identification even in the darkest machine room or edit suite.

Specifications

User Interface 80 buttons with removable overcap for lens chips
Includes factory installed lens chip set
High and Low button tally indication, configurable brightness
Controls up to four KUMO routers
Panel Lock feature
Destination Lock feature
Router Support KUMO 1604
KUMO 1616
KUMO 3232
KUMO 6464
KUMO 1616-12G
KUMO 3232-12G
Salvo 8 Salvos buttons can be enabled to trigger a KUMO router's configured salvos.
Network Interface 1x RJ-45, 10/100/1000 Ethernet
Embedded web server for remote control
USB Interface 1x Mini-USB for IP configuration using AJA eMini-Setup
Size (w x d x h) 2RU - 17.4" x 1.3" x 3.5" (441.96 x 33.02 x 88.9 mm)
Weight 2.1 lb (1.0 kg)
Power 10-14 VDC regulated, 4W typical, 9.6W max, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
