AJA

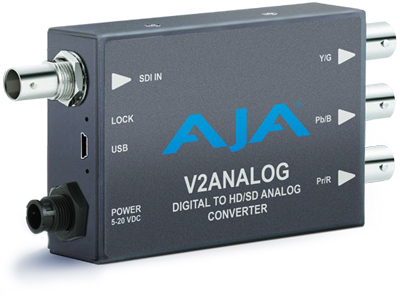

AJA HD/SD SDI to Analog Mini-Converter

Item Code: BLO/AJA-V2ANALOG

V2Analog is a high-quality, cost-effective digital to analog video converter that's an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow.

Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.

RRP: 0   Save:

  • Qty:
  • Price:
    $530.00
    inc. GST

Found this item cheaper elsewhere? Let us know

V2Analog is a high-quality, cost-effective digital to analog video converter that’s an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.

Breakthrough price performance

V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions using AJA’s industry-leading conversion technology to ensure the highest quality images for the most demanding situations.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Extensive format support

V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow.

Pristine image quality

Utilizing a full 10-bit data path and AJA's high-quality digital-to-analog technology, V2Analog maintains the most detail possible to ensure a quality conversion at an extraordinary price.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Specifications

Formats 1080psf 23.98/24/25 Hz
1080i 50/59.94/60 Hz
720p 50/59.94/60 Hz
525i/625i 50/59.94/60 Hz
Inputs 1 x BNC, HD/SD-SDI (SMPTE-259/292/296M)
Output BNC:
HD component YPbPr, RGB (SMPTE-274)
SD component (Betacam, EBU-N10), composite, YC (S-Video)

Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions.
USB Interface USB 2.0 (for connection to Mac or PC)
Dip Switches Control (Local/Remote)
Component/Composite (SD only)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD only)
Power 5 to 20 VDC, 3 watts
Dimensions 5.1 x 2.4 x 1.0" (13.0 x 6.1 x 2.5 cm)
Weight Not specified by manufacturer
