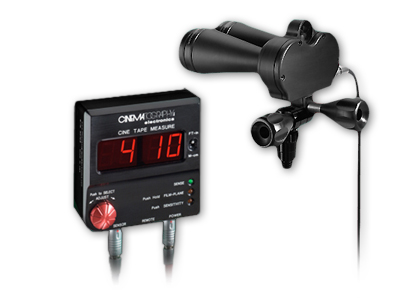

C.E. Cine Tape Focus Meter

Code:
This versatile ultrasonic system continuously calculates the distance between a subject and the camera's film-plane. By continuously measuring distance during a shot, small or subtle subject movements are no longer a problem.

ENQUIRE NOW

Got a question about this product?
Send us a message

RENTAL INFORMATION

Have a look at our FAQs

This versatile ultrasonic system continuously calculates the distance between a subject and the camera's film-plane. By continuously measuring distance during a shot, small or subtle subject movements are no longer a problem.

Kit includes:

  • Cine Tape Measure Control
  • Cine Tape Sensor w/ mounting bracketry.
  • Sensor cable and various power cables.
  • Extension tubes.

Specifications: CINE TAPE MEASURE CONTROL

Size: 76 x 76 x 31mm / 3.0 x 3.0 x 1.2"
Weight: 7 oz. (195 Grams)
Measurement Units: Feet & Inches or Meters & Centimeters
Measurement Resolution: 1 inch; 1 cm
Film Plane Offset Range: -9 to 99 ft; -3 to 30 m
Close Focus Range: 12 to 30 inch; 30 to 90 cm
Power Connector: Fischer 3 Pin
Sensor Connector: Fischer 5 Pin
Remote Connector: Lemo 6 Pin
Circuit Protection: Auto Reset Fuse
DC Power Requirements: 9 to 32 Volts
Current Consumption: 50 to 150 mA

Specifications: SENSOR ASSEMBLY

Size: Inch: 3.5 x 5.4 x 3.6   mm: 88 x 137 x 92
Weight: 6 oz. (170 Grams)
Construction: Machined Delrin and Aluminum
Sensor Connector: Fischer 5 Pin
Pan Rotation: 360°
Tilt Movement: 180°
Pan and Tilt Lock: Twist Lock Knob (2)
Mounting Hole: 1/4-20 Threaded
Mounting Stud: 3/8-16 Threaded
Mounting Diameter: 5/8 inch, 15 mm, 19 mm

Specifications: CINE TAPE MEASURE CONTROL

Size: 76 x 76 x 31mm / 3.0 x 3.0 x 1.2"
Weight: 7 oz. (195 Grams)
Measurement Units: Feet & Inches or Meters & Centimeters
Measurement Resolution: 1 inch; 1 cm
Film Plane Offset Range: -9 to 99 ft; -3 to 30 m
Close Focus Range: 12 to 30 inch; 30 to 90 cm
Power Connector: Fischer 3 Pin
Sensor Connector: Fischer 5 Pin
Remote Connector: Lemo 6 Pin
Circuit Protection: Auto Reset Fuse
DC Power Requirements: 9 to 32 Volts
Current Consumption: 50 to 150 mA

Specifications: SENSOR ASSEMBLY

Size: Inch: 3.5 x 5.4 x 3.6   mm: 88 x 137 x 92
Weight: 6 oz. (170 Grams)
Construction: Machined Delrin and Aluminum
Sensor Connector: Fischer 5 Pin
Pan Rotation: 360°
Tilt Movement: 180°
Pan and Tilt Lock: Twist Lock Knob (2)
Mounting Hole: 1/4-20 Threaded
Mounting Stud: 3/8-16 Threaded
Mounting Diameter: 5/8 inch, 15 mm, 19 mm
