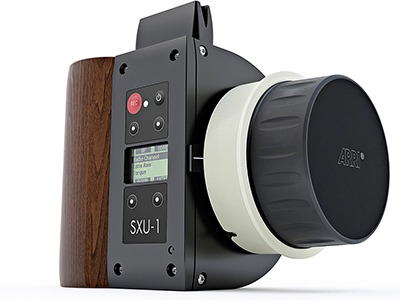

ARRI SXU-1 Single Axis Controller System

Code:
Single-axis wireless hand unit for iris, focus or zoom control. Works with ALEXA Mini, ALEXA Plus, ALEXA Studio, ALEXA SXT W, ALEXA LF and ALEXA 65 cameras and UMC-4, SMC-1, EMC-1 and AMC-1 motor controllers and cforce mini RF

Key Features:

  • For Focus, Iris, or Zoom
  • Remote REC and Tally
  • Use with WCU-4 for Dual-Axis Control
  • Compact Form

ENQUIRE NOW

Got a question about this product?
Send us a message

RENTAL INFORMATION

Have a look at our FAQs

Single-axis wireless hand unit for iris, focus or zoom control. Works with ALEXA Mini, ALEXA Plus, ALEXA Studio, ALEXA SXT W, ALEXA LF and ALEXA 65 cameras and UMC-4, SMC-1, EMC-1 and AMC-1 motor controllers and cforce mini RF

Specifications

Software Update Via SD card
Encoder 16-bit
Power Supply Sony-type NP-FM500H
Power via LCS cable through ARRI camera or HPS-1 unit
Operating Temperature -20 to 50°C
Dimensions Knob Diameter: 3" (76 mm)
LCD Display: 1.2" (31 mm) (diagonal)
Weight Including Battery: 700 g

Key Features:

  • For Focus, Iris, or Zoom
  • Remote REC and Tally
  • Use with WCU-4 for Dual-Axis Control
  • Compact Form
