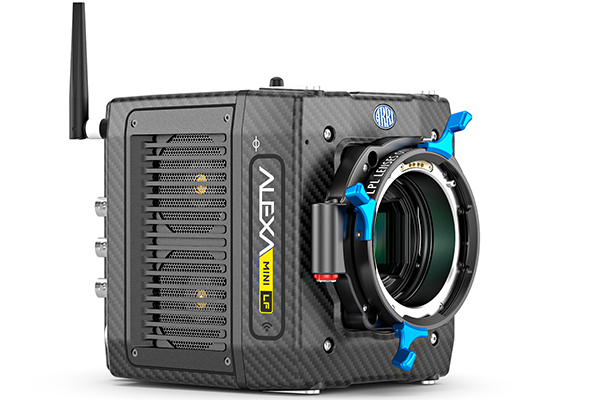

ARRI Alexa Mini LF

Combining the compact size and low weight of the popular ALEXA Mini with the large-format ALEXA LF Sensor, ALEXA Mini LF brings exciting new creative possibilities to ARRI’s large-format camera system.

Key Features

  • Large-Format 4448 x 3096 Sensor
  • Native 4K Recording in ARRIRAW & ProRes
  • Open Gate, 16:9 & 2.39:1 Anamorphic Mode
  • Native 800 ASA, 14+ Stops Dynamic Range


Got a question about this product?
Send us a message


Have a look at our FAQs

Resolution 4.5K
Mount Type LPL Mount with LBUS connector
PL Mount (via PL-to-LPL adapter)
Frame Rate Up to 90 fps
Recording Media Codex Compact Drives
Recording Codecs ARRIRAW, ProRes
Colour Options Rec 709, Rec 2020
Log C, Custom Look (ARRI Look File ALF-2)
Sensor Large Format ARRI ALEV III (A2X) CMOS sensor with Bayer pattern color filter array
Base Sensitivity EI 800 base sensitivity
Exposure Latitude Adjustable in 1/3 stops from
EI 160 to EI 3200
Weight Body only with LPL lens mount:
~ 2.6 kg/ 5.7 lbs
Power Input 11-34 V DC, Lemo 8-pin
User Keys 6 soft keys on camera body
