What's In The Box?
- CREW TX x 1
- CREW RX x 1
- Backup High Gain Antennas x 4
- Tags - white x 4 & Yellow x 4
- D-tap to 2-pin LEMO cable x 2
- USB-C to C cable x 2
- USB-A to C OTG
- Carrying Case
Features
- KUWI 2.0 Pro wireless tech, NOT WIFI
- Proprietary anti-interference RF
- 5.1-5.9GHz License-Free DFS Comply
- Auto scan and select optimal channel
- 3GSDI & HDMI HD video transmission
- 1.2km / 4000ft (Line-of-Sight) distance
- USB-C Video Capture out for PC/Mac
- H.265 up to 26.8Mbps visual lossless
- Consistent 32ms ultra low latenty
- Uncompromised 1T to 4R Multicast
- MetaData & TC trigger transmission
- High bright OLED display & configuration
- AES-256 dual encryption protection
- NP-F / 2-pin LEMO / USB-C Power Supply
1.2km Long Range Wireless Video
Professional RF, NOT WIFI

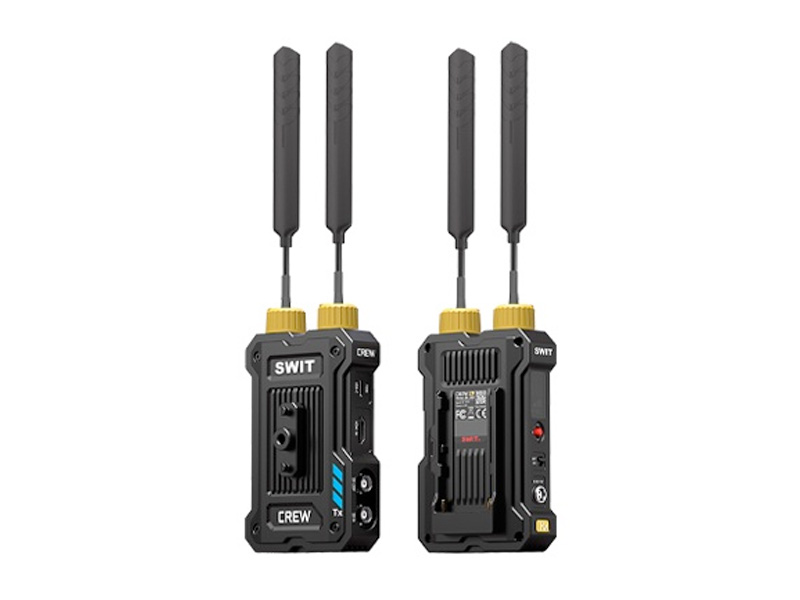

The new generation CREW wireless system features 2x longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.
KUWI 2.0 Professional Chip, Stable As Always
The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products and ensures the stable transmission in the most complex environments.
Professional Video Production Applications
The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinema and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.
Reliable 1.2km Long Distance Transmission
CREW features an advanced video codec and optimized intelligent RF power, enabling transmission range of up to 1.2 km (4000 ft) in line of sight, to significantly expand the monitoring coverage, provide greater flexibility and freedom for live video production.
32ms Consistent Low Latency
The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for professional wireless follow focus, the most demanding application in terms of latency. The latency is consistent, regardless of environmental interference. In multi-camera productions, using CREW ensures the strict synchronization of your multiple wireless channels.
Uncompromised 1TX to 4RX Multi-Cast
The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality. All the CREW family Tx and Rx are fully cross-compatible for multicast.
3G-SDI / HDMI / UVC
The Transmitter features:
3G-SDI In x 1, Loop Out x 1 HDMI In x 1
The Receiver features:
3G-SDI Out x 2 HDMI Out x 1 USB-C Video Capture Out x 1
* Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.
USB-C Video Capture
For PC/Mac Livestreaming
The CREW wireless receiver provides USB-C port video capture output, and can be connect to a computer for livestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.
Monitor by Smart Devices
Connect CREW Receiver to a smart phone or tablet via USB-C port, to watch the camera video wirelessly instead of using a pro video monitor.
* Compatible with all 3rd party “USB camera” apps.
Visually Lossless High Video Quality
The CREW series wireless transmission adopts H.265 High Quality Encoding with a bit rate up to 26.8 Mbps, making it visually lossless compared to cable video.
Display and Configuration
High Bright Color OLED Screen
Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight. It displays essential transmission status information such as video format, frequency channel, signal strength, etc. A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.
MetaData Transmit
CREW supports to wirelessly Transmit SDI embedded MetaData from cine cameras, for DIT livegrading, record and manage the camera information.
TimeCode Trigger Transmit
The CREW wireless system also supports the transmission of SDI embedded timecode and Start/Stop trigger from the camera.
Dual Encryption protection
The CREW wireless system has Dual Encryption protection:
Uses exclusive KUWI chip for proprietary RF Adopts AES-256 high level encryption to ensure that the video signals captured on movie sets are not leaked to third parties.
Multiple Power Supply
The CREW wireless can be powered up by NP-F battery or D-tap to 2-pin LEMO cable that are provided in the package. You can also power the CREW conveniently via its USB-C port.
Group Tagging
4 colors Tags are provided to be placed on the antennas. Different pairing groups of Tx and Rx are distinguished by different colored Tags.
Available Packages
Standard 1T 1R Package
The CREW wireless provides 1 Tx + 1 Rx package including all essential accessories and comes in a carrying case for easy storage and transport.
- CREW Tx + Rx
- Backup High Gain Antennas x 4
- Tags - white x 4 & Yellow x 4
- D-tap to 2-pin LEMO cable x 2
- USB-C to C cable x 2
- USB-A to C OTG
- Carrying Case
1T 2R Package
- CREW Tx + Rx + Rx
- Backup High Gain Antennas x 6
- Tags white x 6 & Yellow x 6
- D-tap to 2-pin LEMO cable x 3
- USB-C to C cable x 3
- USB-A to C OTG
- Carrying Case
