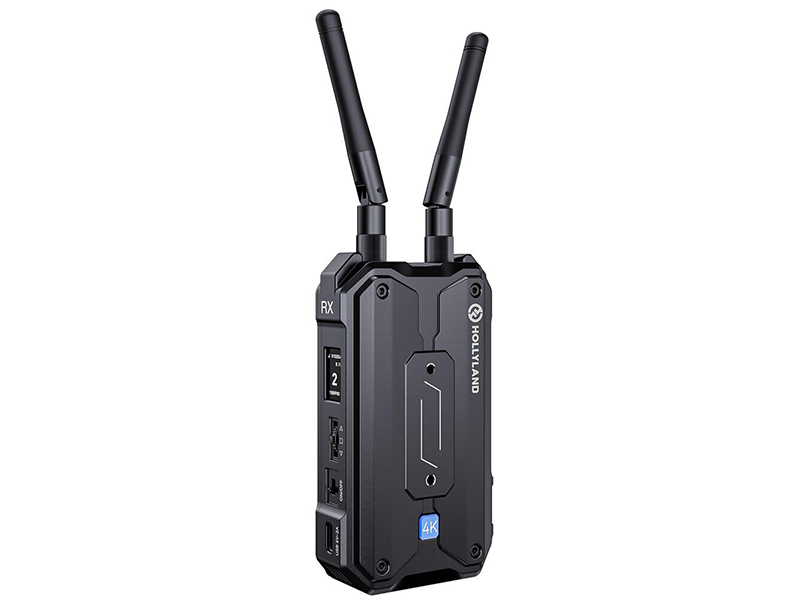

Hollyland Pyro - H 4K HDMI Wireless Video Transmission Receiver Unit Only

Code: HOL/PYHRX
$315.00

Pyro H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Pyro H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland's pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.

Key Features

1 Transmitter & 4 Receivers

Offers more flexibility when additional monitoring needs emerge on set.

1,300ft (400m) LOS Range

Ultra-long-range wireless transmission capability.

0.06s Low Latency

Excels with increased transmission distance while preserving video quality and minimizing latency.

2.4GHz & 5GHz Dual Band

Provides better signal transmission performance and efficiency.

4K30 Transmission

Presents images with superior clarity, detail, and realism.

HDMI Loopout

Without compromising the quality of the transmitted signal.

UVC Streaming

Convenient for live streaming and video conferencing.

Smart Channel Scan

Chooses a high-quality frequency channel.

More Flexible

Pyro H's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro H features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Specifications
PortDC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
HDMI Loopout: HDMI 1.4b
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power SupplyUSB-C: 5V/2A (not supported in Broadcast mode)
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V
Power Consumption<7W
Net Weight192g
DimensionsL × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format
HDMI

720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
4K30/25/24
HDMI Loopout

720p50/60
1080i50/60
1080p24/25/30
1080p50/60
4K30/25/24
Operating Frequency
5 GHz Frequency Band

5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band

2.412 – 2.484 GHz
Transmit Power< 23 dBm
Receiver Sensitivity/
Latency0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth20 MHz (Broadcast: 40 MHz)
