The Canon Riser for LeftField Mini (DJI RS) helps set your camera to the correct height for DJI dovetails. Coming in three components, the Riser mounts to the LeftField Mini Baseplate with a built-in safety catch for securing or releasing the dovetail.
The Canon Riser is compatible with Canon’s C70, C80, C200, C300 Mk III, C400, C500 Mk II and C700 cameras and Blackmagic Design’s PYXIS.
Key Features
- DJI Dovetail Design – The Riser sets Canon cameras to the correct height for use with DJI RS dovetails.
- Modular Design – The Riser comes in three parts that install cleanly.
- Canon Compatible – The Canon Riser works with a range of Canon cinema cameras.
- Safety Button – An easy-press safety allows you to quickly release the DJI dovetail.
- Built for LeftField Mini – The Riser mounts securely to the LeftField Mini Baseplate.
The Canon Riser for LeftField Mini allows you to use a range of Canon cameras with DJI RS gimbals: setting the camera to the correct height when paired with DJI dovetails. Using a modular system of three plates, the Riser mounts cleanly to the LeftField Mini Baseplate, with an easy-press safety for quick-release.
Lightweight and practical, the Riser is compatible with a range of Canon cameras including the Canon C70, C80 and C400 – as well as the Blackmagic PYXIS.
Designed for DJI
The Riser is designed to be used with DJI RS gimbals and dovetail plates, providing the necessary height clearance from the camera’s optical centre. Dovetails are front-loaded into the Riser, offering sliding travel, before being locked in place with the ratcheting lever clamp.
Clean Installation

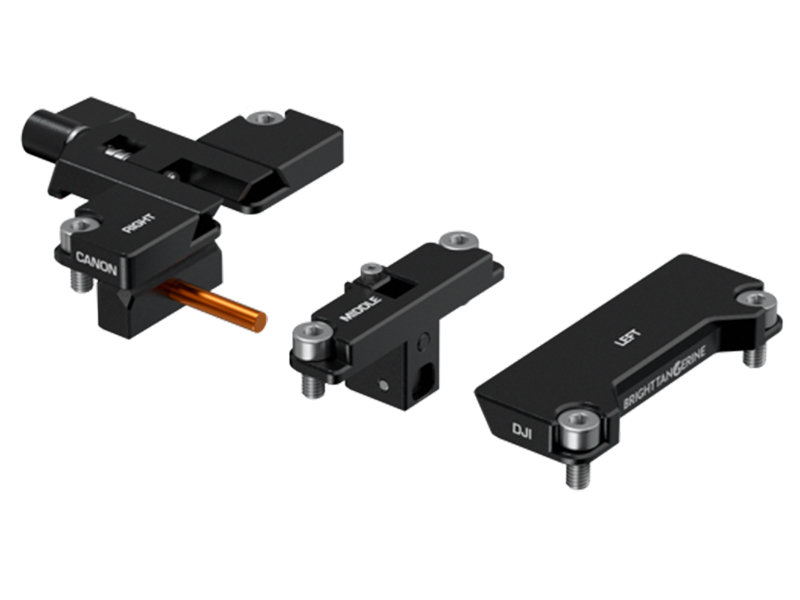

The Canon Riser comes in three distinct parts: left, middle and right. Each is labelled to avoid confusion and ensure correct directional placement. All three mount via M4 screws, meaning it just takes a standard 3mm Hex Key to install.
Canon-Compatible
For Canon shooters wanting the versatility of DJI gimbals, the Canon Riser is the ideal solution. It is compatible with a range of Canon cinema cameras such as the C70, C80, C200, C300 Mk III, C400, C500 Mk II and C700. This bridges the gap between your Canon camera, DJI gimbals and our LeftField Mini Baseplate: creating a consistent and convenient rigging setup.
Quick-Release
Once installed, you can just as easily uninstall your DJI dovetail. The orange easy-press safety linking the right and middle parts of the Riser help keep the dovetail in place when you need it, but give you an easily-accessed quick-release button.
Part of the Canon System
Bright Tangerine’s range of Canon camera accessories provide freedom and convenience for customising your rig. Durable and reliable, every component is engineered and tested to the highest standards of quality: maximising compatibility and minimising downtime on set.
