Blackmagic Ursa Cine 12K LF 100G + EVF

Code: NMA/CINEURSAAB12KLFCEVF
$18,655.00

A large format RGBW 36×24mm sensor digital film camera with 16 stops of dynamic range, interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen, built-in ND filters and industry standard Lemo and Fischer connections. Includes the URSA Cine EVF.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Blackmagic Ursa Cine 12K LF 100G + EVF is back in stock.

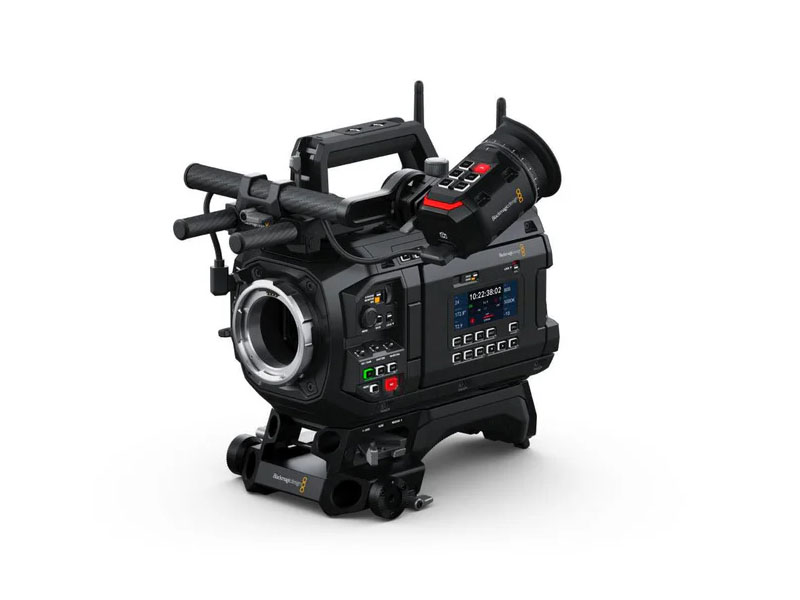

Cinematic Large Format Digital Film Camera with EVF

The URSA Cine 12K LF 100G with EVF combines the full capabilities of the 12K LF 100G camera with an included URSA Cine EVF for a complete digital film package. The camera features a cinematic 12K full-frame 36 x 24mm sensor with 16 stops of dynamic range, Blackmagic RAW capture, a blazingly fast 100GbE port for SMPTE-2110 live production, and built-in ND filters.

URSA Cine EVF

The included URSA Cine EVF features a full HD OLED display and precision glass optics for an extremely high-quality viewfinder image. It offers an adjustable diopter and function buttons, and connects via a single USB-C cable for power and video. Quick setup and versatile mounting make it ideal for handheld, shoulder-mount, and studio production scenarios.

Built for Production

The camera body features a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin. A 5" fold-out HDR touchscreen and a dedicated assist station with a second 5" LCD provide comprehensive monitoring options. Standard LEMO and Fischer connectors, 12G-SDI out, 100G Ethernet, USB-C, and XLR audio round out the connectivity.

Camera Features

Effective Sensor Size35.64mm x 23.32mm (Large Format)
Pixel Pitch2.9 microns
Lens MountPL mount. Interchangeable with URSA Cine lockable EF mount included.
Dynamic Range16 Stops
Shooting Formats12,288 x 8040 (12K 3:2), 12,288 x 6912 (12K 16:9), 12,288 x 6480 (12K 17:9), 12,288 x 5112 (12K 2.4:1), 8192 x 5360 (8K 3:2), 8192 x 4608 (8K 16:9), 4608 x 2592 (4.6K B4 crop), 4096 x 2680 (4K 3:2) and more
High Speed Frame Rates12K 3:2 up to 80fps · 12K 17:9 up to 100fps · 12K 2.4:1 up to 120fps · 8K/4K 3:2 up to 144fps · 8K/4K 2.4:1 up to 224fps · 4.6K B4 crop up to 240fps
Built-in ND FiltersClear, 2-stop, 4-stop and 6-stop IR ND filters
Monitoring Screens2 x 5 inch 1920 x 1080 LCD capacitive touchscreen, 1500 nits · 1 x Camera Status Screen
EVF DisplayFull 1920 x 1080 OLED, 6.22 million dots
EVF Diopter Range-5 to +5
Timecode ClockLess than 1 frame drift every 8 hours

Connections

SDI Video Outputs2 x 12G-SDI (1.5G, 3G, 6G, 12G)
100G Ethernet1 x 100G QSFP28 for SMPTE-2110 IP video in/out, file sharing, cloud uploads, streaming
Analog Audio Inputs2 x XLR (mic/line/AES, phantom power) · 1 x 3.5mm headset jack
Analog Audio Outputs1 x 3.5mm headset jack
URSA Cine EVF Port1 x locking USB-C (power, data, video)
USB-C Monitor Outputs2 x USB-C side monitor ports (URSA Cine EVF, PYXIS Monitor or DisplayPort)
Accessories1 x 7-pin Lemo EXT · 1 x 3-pin Fischer RS
Power Input1 x 8-pin Lemo compatible +24V DC

Audio

MicrophoneIntegrated stereo microphone
Built-in Speaker1 x mono speaker

Video Standards

HD1080p23.98-60, 1080i50-60
Ultra HD2160p23.98-60
SMPTE ComplianceSMPTE 2110-20, 2110-21, 2110-30, 2110-40, 292M, 424 A&B, 2081-1, 2082-1
SDI Audio Sampling48 kHz, 24-bit

Supported Codecs

CodecsBlackmagic RAW 3:1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5 · H.264 Proxy 1920x1080 · Blackmagic IP10

Media

Media1 x Blackmagic Media Module 8TB

Environmental

Operating Temperature0 to 40C (32 to 104F)
Relative Humidity0% to 90% non-condensing
