Blackmagic Fairlight Live Audio Panel 20

Code: NMA/DVFLAAFLP20
$5,000.00

A desktop control surface with 20 motorized faders and two large touchscreen displays, designed for professional live audio mixing with Fairlight Live, ideal for home studios and mid-sized productions.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Blackmagic Fairlight Live Audio Panel 20 is back in stock.

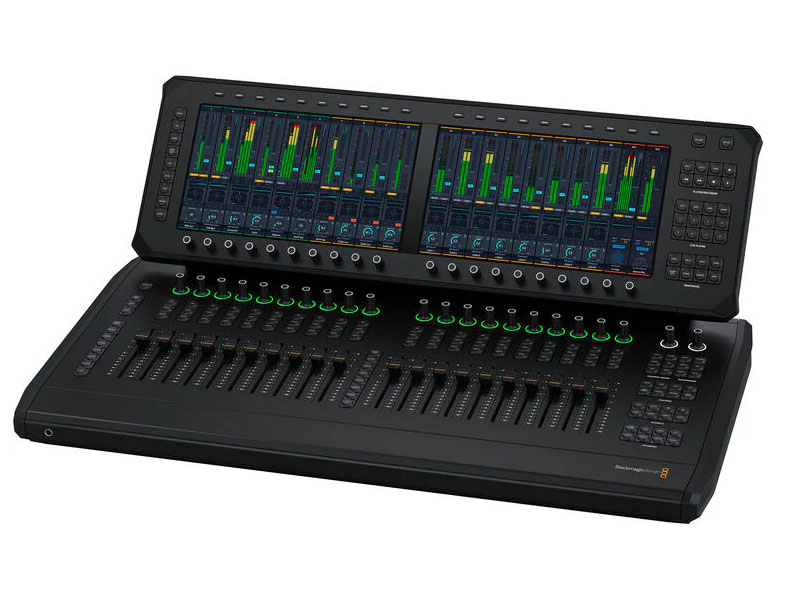

20-Fader Desktop Control Surface for Fairlight Live

The Blackmagic Fairlight Live Audio Panel 20 is a desktop control surface designed for professional live audio mixing with Fairlight Live software. It features 20 motorized faders, 20 LED ring knobs, and two large touchscreen displays showing channel strip information, levels, EQ, dynamics processing, and plug-in interfaces.

Mid-Sized Production Mixing

Controls include layers, bus, matrix, aux, VCA, sub-masters, and talkback for comprehensive hands-on control. The panel supports SMPTE-2110 IP video and audio plus analog audio in and out, and connects to your computer via Ethernet or USB. Dual AC power supplies provide redundancy, making it ideal for home studios and mid-sized live productions.

Display

Built-in Displays2 x 11.6 inch 1920 x 1080 LCD touchscreens

Controls

Channel Faders20 flying faders
Rotary Knobs20 x multi-function with ring LED indicators · 20 x contextual
Contextual Buttons20
Channel ButtonsSelect, Solo and Mute per channel
KeypadsLayers, Bus, Matrix, Aux, VCA, Sub-masters, Talkback, Snapshots, Control Room/Monitoring, Masters, Globals, Player/Recorder, Cue Player
Talkback4 x talkback groups, direct to channel and ALL · Built-in talkback microphone

Connections

2110 IP Networks2 x 10G RJ45 Ethernet
1G Control Network1 x 1G RJ45
HDMI Output1 x HDMI Type A (HD or Ultra HD)
Analog Audio Inputs1 x 3-pin XLR mic · 1 x 5-pin XLR talkback headset
Analog Audio Outputs2 x 3-pin XLR line · 1 x 5-pin XLR talkback headset · 2 x 6.35mm headphone jacks
Computer Interface1 x USB Type-C
Power2 x IEC C14 (dual redundant AC power supplies)

Software

IncludedFairlight Live · Blackmagic OS
Operating SystemsMac 15.0 Sequoia, Mac 26.0 Tahoe or later · Windows 11

Environmental

Operating Temperature0 to 40C (32 to 104F)
Relative Humidity0% to 90% non-condensing
