Blackmagic Videohub Smart Control Pro

Code: NMA/VHUBWSCPRO
$1,155.00

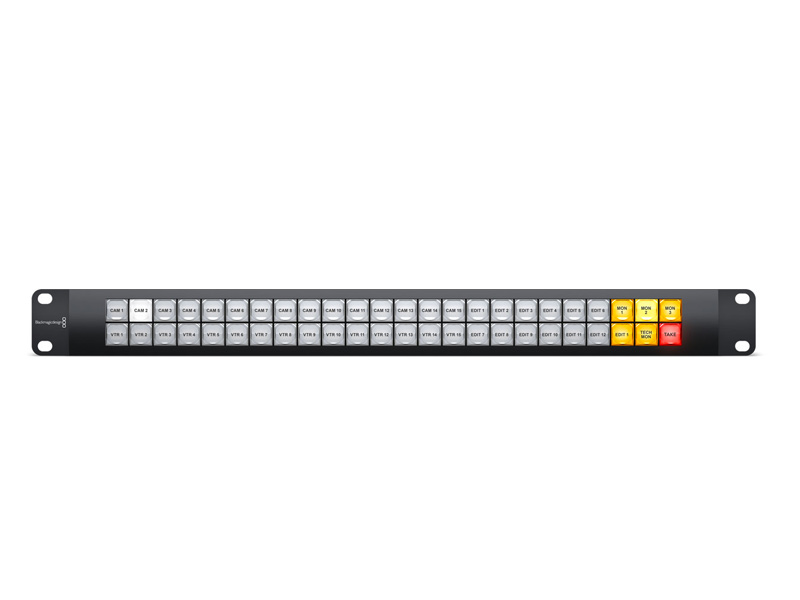

When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Blackmagic Videohub Smart Control Pro is back in stock.

Hardware Control Panels

Add incredible rack mount hardware control panels

For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels!

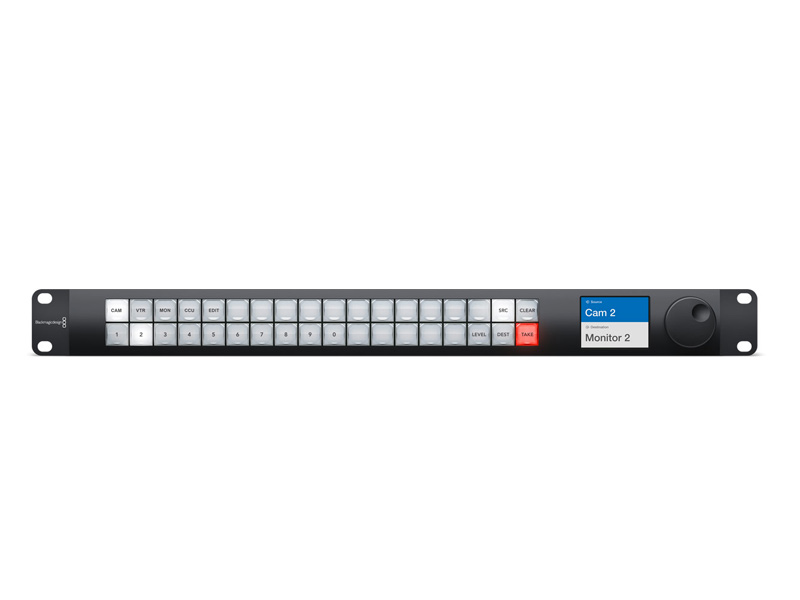

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!

Connections

Ethernet

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.

RS-422

In and Out (for future implementation)

Computer Interface

USB-C for configuration and software updates.

Power

100 - 240 AC

Macro Capability

Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.

Hardware Control

48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
