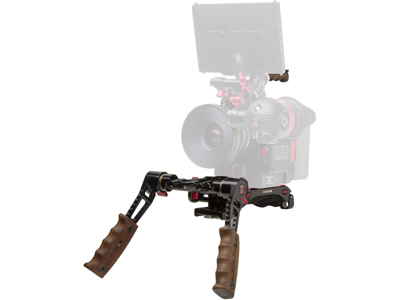

Zacuto RED DSMC2 EVF Recoil Kit

Code: ZAC/Z-RER
This Recoil rig is a shoulder rig designed specifically for the RED DSMC2 body, which includes the Raven, Weapon, Epic Weapon (Epic-W), and Scarlet Weapon (Scarlet-W), Monstro, Helium and Gemini.

For purchasing information

Enquire Now

What's In The Box?

  • VCT Pro
  • Top Plate
  • Top Handle
  • 3” Z-Rail
  • Shorty Trigger Grips
  • This Recoil rig is a shoulder rig designed specifically for the RED DSMC2 body, which includes the Raven, Weapon, Epic Weapon (Epic-W), and Scarlet Weapon (Scarlet-W), Monstro, Helium and Gemini. This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a shoulder mount rig, the balance point needs to be directly over your shoulder which puts the camera behind you. The Recoil rig adjusts for that balance point and relocates focus, monitoring and camera controls forward, creating a lighter, shorter and properly balanced rig.

    Includes:

    VCT Pro

    The Pro baseplate has a sliding top plate for quickly removing the camera from the rig or fast len changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with ¼” 20 and 3/8" 16 screw option). It has removable and extendable 6.5” iris rods and rows of ¼” 20 screw holes along the sides for accessories. It has quick release 15mm rod parts in the rear. The recessed rod mount offers maximum accessory capable space under your camera lens. It has the most comfortable gel padding shoulder pad for all-day shoulder mounted work! The baseplate. The rod riser included on the VCT Pro in this kit is taller to accommodate the RED cameras.

    Top Plate

    The Top Plate is designed to work with the RED DSMC2 body, which includes the Monstro, Helium and Gemini. It attaches to the top of the camera via four included ¼ 20 thread screws. It has numerous ¼ 20 screw holes on the top and sides for attaching various accessories. There are built in POGO connectors for the RED monitor and remote trigger accessory connections. You can also add Z-Locks on the front of the plate for adding top 15mm rods for mounting motors, etc by emailing sales@zacuto.com. At the back of the plate is a vertical 15mm rod port for mounting a Zamerican arm or other 15mm rod accessory.

    Top Handle

    The Top Handle is a slim design that fits comfortably in your hand. It gives you the ability to mount several accessories with the built-in ¼ 20 screw holes, Z-Rail on top and a coldshoe mount. You can also add an optional 15mm Rod Lock for mounting an Axis Mini or articulating arm.

    3” Z-Rail

    The 3” Z-Rail attaches via (2) ¼” 20 screws (included) that are spaced 3/8" screw center to center at their closest to 2" 5/32" at their furthest. This is used to attach our Top Handle.

    Shorty Trigger Grips

    The Shorty Trigger Grips are 8” dual wooden handgrips that are comfortable and quick to flip into position. The Shorty Trigger Grips slide onto 15mm rods. They allow for single-handed 360° rotation with the simple press of a trigger. The two handles rotate independently of each other. Flip them down for a low, rock-solid handgrip. Raise it up for more of an Aaton style
