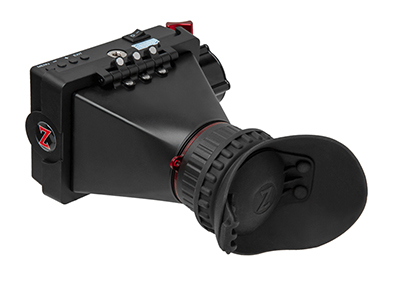

Zacuto ACT EVF Pro
Code: ZAC/Z-AEVF
The ACT EVF Pro is a 3.5" LED back-lit HDMI electronic viewfinder featuring 800 x 480 resolution, flip up eyepiece with anti-fog optics and HDMI input with loop-through HDMI output
For purchasing information
Enquire Now
The ACT EVF Pro is a 3.5" LED back-lit HDMI electronic viewfinder. It is included FREE with the ACT Recoil Rigs.
The ACT EVF Pro has a flip up eyepiece with our well known anti-fog optics, so it can be used as a small monitor or an EVF. It has a 1.8x magnification lens system and includes a +1 and +2 drop in diopter.
The ACT EVF resolution is 800 x 480, and supports input resolutions up to 1920 x 1080. It has an HDMI input with loop-through HDMI output with the ability to daisy chain live displays. It has a 3.5mm stereo headphone jack for audio monitoring. It is self powered with an LP-E6 battery making it the perfect accessory for DSLM or DSLR shoulder rigs!It has plenty of mounting options with a ¼ 20 thread on the top, bottom and sides as well as the fluid ¼ 20 rosette AKA “saucy joint”. It pairs nicely with our Axis Micro or Axis Curve depending on your camera and shooting style.
Features
- 3.5" 800 x 480 LED display
- 160° angle of view
- Input up to 1080p resolution via HDMI
- Power using LP-E6 battery
- HDMI loop output supports display daisy-chaining
- 1/4"-20 threads on top, bottom, and sides
- Rosette with 1/4"-20 thread for mounting
- Flip up eyepiece
- Zacuto anti-fog optics
Monitoring & Image Analysis Tools
- Check field
- Peaking focus assist
- Pixel mapping
- Center marker
- Safe marker (80%, 85%, 90%, 93%, 96%, and 2.35:1)
- Image flip (horizontal, vertical, and horizontal/vertical)
- Battery meter
- Zoom
- Custom color temperature
Specifications
| Display Size |
3.5" / 8.9 cm |
| Screen Resolution |
800 x 480 |
| Aspect Ratio |
16:9 |
| Viewing Angle |
Horizontal: 160°
Vertical: 160° |
| Image Controls |
Check Field, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Scaling, Screen Markers |
| Video |
1x HDMI Type A Input
1x HDMI Type A Loop Output |
| Embedded Audio |
HDMI: 2-Channel |
| Audio |
1x 3.5 mm Headphone Output |
| Video Format |
HDMI
1080p |
| DC Input Power |
6 to 14 VDC |
| Power Consumption |
3 W |
| Mounting |
4x 1/4"-20 Female
1x Rosette with 1/4"-20 Female |
