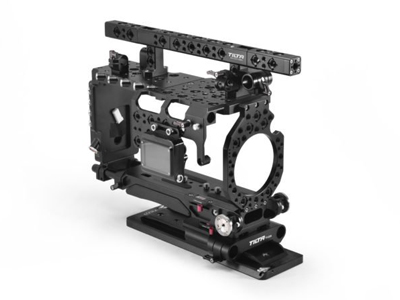

Tilta Camera Cage for Panasonic Varicam 35 - V-Lock

Code: TIL/ES-T75-V
 NO LONGER AVAILABLE

Arm your camera with this Tilta camera cage specifically designed for the Panasonic Varicam 35. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

The Tilta Battery Plate for Panasonic Varicam 35 (available in either gold mount or V-Lock) integrates with the camera body to provide several power outputs. Pins on the plate directly communicate with the top plate when attached which transfers power output functionality. This allows you to power multiple accessories throughout the cage.

The top plate offers 15mm LWS rod support on the back side of the camera while the top handle offers rod support off the front of the camera, allowing you to mount rod-based accessories in a variety of ways. The front rod bracket on the top handle allows you to comfortably attach your Sony Varicam 35 EVF.

The side plate of the cage gives you extra ¼”-20 and ⅜”-16 mounting points as well as camera armor while also allowing you to mount the included power supply voltage readout screen. This screen allows you to easily distinguish what amount of power your camera battery has.

On the bottom of the cage is a 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup. It also includes an ergonomic shoulder pad on the bottom so that you can quickly and easily detach from the dovetail plate and be shoulder mount-ready in no time. The plate also has Arri Standard Rosette connections on the left and right sides to allow you to attach handles for handheld operation.

Color: Black

Materials: Aluminum-alloy

Power Output: Top plate 2-pin and 3-pin ports — 3 Amps max. each 8 Amps max. total
                         Battery plate 2-pin and 3-pin ports — 3 Amps max. each 7 Amps max. total

Rod System: 15mm LWS
