Tilta Camera Cage for Red DSMC2 – Kit B

Code: TIL/ESR-T01-B1

NO LONGER AVAILABLE

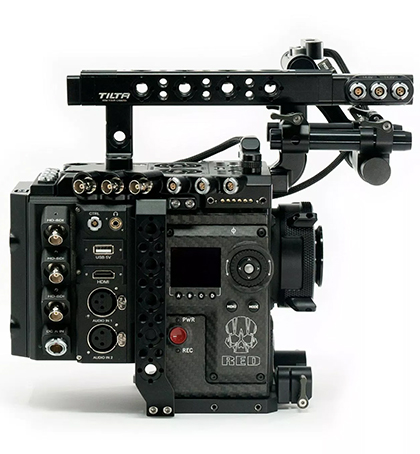

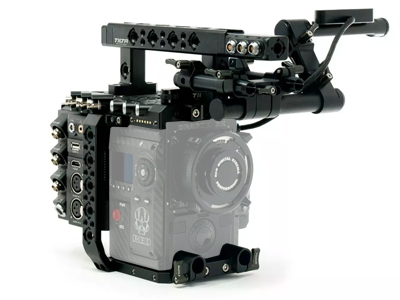

Arm your camera with this Tilta camera cage specifically designed for the DSMC2 line of Red cameras. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

The Tilta Advanced I/O Module on the back of the cage directly integrates with the camera body to provide several power, video, and audio in and outputs. The battery plate on the back comes in either V-mount or gold mount based on your preference. Pins on top of the module directly communicate with the top plate and top handle when attached which transfers the in/out functionality to them. This allows you to power your accessories from virtually anywhere on the cage.

The top plate has several power outputs as well as a Pogo connection so that you can attach your DSMC2 monitor. The included Pogo-to-Pogo Extension Cable allows you to attach your monitor away from the top of the camera body. If you have a Lemo-based DSMC1 monitor, there’s also an included Pogo-to-Lemo Adapter that can be attached so that you can use a Lemo-to-Lemo cable to power the monitor.

The top handle features a record start/stop button and the included Top Handle Power Connection Module can be attached to either the front or back of the handle to provide even more 2-pin and 3-pin power outputs.

On the bottom of the cage is a small 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.

Key Features

For RED DSMC2 cameras (Weapon, Raven, Scarlet-W, and Epic-W)
Power distributed from camera and battery through Cage Top Handle, Top Plate, and I/O Module
Top Handle has REC button
ESP-02 top handle power module included
Advanced Tilta I/O Module with three HD-SDI outputs, one HDMI output, and two 3-pin XLR inputs for sound and video
Multiple 3-pin Fischer and 2-pin LEMO-style power outputs
Pogo extension cable, EVF mount, and LCD bracket included
Constructed from lightweight and durable 7075 aluminum alloy with titanium screws

Specifications

Handle	Top Handle: Cage power pass-through Integrated 15 mm rod mounts EVF rod adapter REC button
Power Module	14.8 V, combined 6 A output 1 x 2-pin output (3 A) 2 x 14.8 V 3-pin Fischer outputs (3 A)
Top Plate	2 x 14.8 V 3-pin Fischer outputs with R/S trigger (3 A) 1 x 14.8 V 2-pin LEMO-style outputs (3 A) 1 x Genlock BNC port 1 x Timecode BNC port 1 x Trigger BNC port
Extension Cord	23.6" / 60 cm
Plate	Converter Plate: Converts Pogo connector to 16-pin LEMO-style (female)
Arm	Side Arm: Multiple mounting points
Module	Advanced Tilta I/O module (Gold mount): 3 x HD-SDI outputs 1 x HDMI output 1 x DC power input 1 x USB power output 1 x CTRL port 2 x XLR inputs with powered/unpowered switch 1 x Stereo headphone output 2 x 14.8 V 3-pin Fischer outputs (3 A) 2 x 14.8 V 2-pin LEMO-style outputs (3 A)
Included Rods	2 x 15 mm Length: 3.14" / 80 mm
