Tilta Camera Cage for Red DSMC2 – Kit A

Code: TIL/ESR-T01-A1
$6,130.00

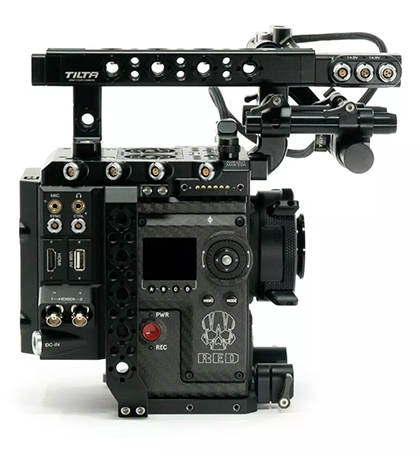

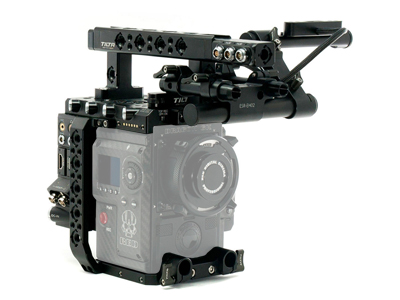

The Camera Cage for Red DSMC2 from Tilta is a custom-fit cage for the RED DSMC2 Cameras (Weapon, Raven, Scarlet-W, and Epic-W). It is made of 7075 aluminum and includes a top handle with a REC button, a Pogo extension cable, and a 15mm LSW baseplate for mounting the camera.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Tilta Camera Cage for Red DSMC2 – Kit A is back in stock.

What's In The Box?

  • 1x Top handle with power pass through and Run/Stop button
  • 2x 15mm top rod adapters
  • 1x 15mm LWS to 19mm rod adapter for LCD bracket
  • 1x 19mm rod adapter for LCD bracket
  • 1x EVF holder
  • 1x Top handle power connection module
  • 1x Top plate
  • 1x Pogo to 16-pin Lemo adapter for DSMC1 LCD/EVF
  • 1x Switchable DSMC2 LCD bracket
  • 1x Pogo to Pogo Extension Cable
  • 1x Red cage A1 side arm
  • 1x Tilta Basic I/O Module (available in V-mount or gold mount)
  • 1x 15mm LWS Tilta standard baseplate
  • 2x 15mm x 80mm rods
  • Arm your camera with this Tilta camera cage specifically designed for the DSMC2 line of Red cameras. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

    The Tilta Basic I/O Module on the back of the cage directly integrates with the camera body to provide several power, video, and audio in and outputs. The battery plate on the back comes in either V-mount or gold mount based on your preference. Pins on top of the module directly communicate with the top plate and top handle when attached which transfers the in/out functionality to them. This allows you to power your accessories from virtually anywhere on the cage.

    The top plate has several power outputs as well as a Pogo connection so that you can attach your DSMC2 monitor. The included Pogo-to-Pogo Extension Cable allows you to attach your monitor away from the top of the camera body. If you have a Lemo-based DSMC1 monitor, there’s also an included Pogo-to-Lemo Adapter that can be attached so that you can use a Lemo-to-Lemo cable to power the monitor. Alternatively, you can use the optional Pogo-to-Lemo cable to power your DSMC1 monitor.

    The top handle features a record start/stop button and the included Top Handle Power Connection Module can be attached to either the front or back of the handle to provide even more 2-pin and 3-pin power outputs.

    On the bottom of the cage is a small 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.

    Key Features

    • For RED DSMC2 cameras (Weapon, Raven, Scarlet-W, and Epic-W)
    • Power distributed from camera and battery through Cage Top Handle, Top Plate, and Basic I/O Module
    • Top Handle has REC button and distributes 6A of power
    • Constructed from lightweight and durable 7075 aluminum alloy with titanium screws
    • In / Outs:
      • 2x Cold shoe mounts
      • 2x 14.8V 3-pin Fischer outputs (top handle)
      • 1x 14.8V 2-pin Lemo output (top handle)
      • 2x 14.8V 3-pin Fischer outputs (top mount)
      • 2x 14.8V 2-pin Lemo outputs (top mount)
      • 2x HD-SDI outputs
      • 1x HDMI output
      • 1x P-tap power output
      • 1x 4+2-pin 12V-14.8V Lemo DC power input
      • 1x USB power output
      • 1x CTRL port
      • 1x SNYC port
      • 1x Stereo headphone output
      • 1x Stereo microphone input

    Specifications

    Handle Top Handle:
    Cage power pass-through
    Integrated 15 mm rod mounts
    EVF rod adapter
    REC Button
    Power Module Top Handle:
    14.8 V, combined 6 A output
    1 x 2-Pin output
    2 x 3-Pin output
    Top Plate 2 x 14.8 V / 3-Pin Fischer outputs with R/S Trigger
    1 x 14.8 V / 2-Pin LEMO-Style outputs
    1 x Genlock BNC port
    1 x Timecode BNC port
    1 x Trigger BNC port
    Extension Cord 23.6" (60 cm)
    Arm Side Arm: Multiple mounting points
    Module Basic Tilta I/O module (V-mount)
    2 x HD-SDI output
    1 x HDMI output
    1 x DC power input
    1 x USB power output
    1 x CTRL port
    1 x SNYC port
    1 x Stereo headphone input
    1 x Stereo headphone output

    Included Rods 2 x 15 mm
    Length: 3.14"
