Teradek VidiU Go Deluxe Kit

Code:
With VidiU Go, your live production is taken to the next level with broadcast quality 1080p60 video, bonded network redundancy, and cutting edge HEVC compression.

For purchasing information

Enquire Now

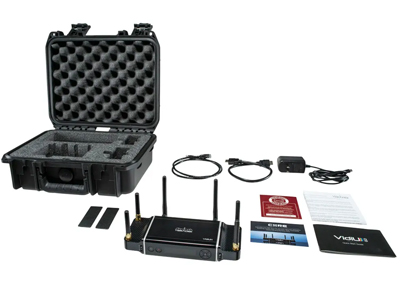

What's In The Box?

  • 2x VidiU Nodes (South America/Australia)
  • 2x Sim Card Adapter
  • 2 x Antenna 2dBi WiFi 2.4/5.8 GHz
  • 1x Go Core Credit Insert
    *Please note these credits are in USD
  • 1x VidiU Go
  • 1x Ethernet Cable
  • 1x HDMI Male Type A (Full) - HDMI Male Type A (Full)
  • 1x SDI - BNC to BNC Cable
  • 1x Teradek Case Medium - VidiU Go and Nodes
  • 1x PSU 45W USB-C Power Adapter
  • 4x Antenna penta straight sma mount
  • 1x Hotshoe Adapter

Anybody can stream live online, but not everyone can make it professional. With VidiU Go, your live production is taken to the next level with broadcast quality 1080p60 video, bonded network redundancy, and cutting edge HEVC compression.

This bundle includes 2 x VidiU Nodes suitable for Australia & South America alongside a Core Credit voucher to get you started using Core!

Features

Dual Video Inputs

With HDMI and SDI inputs, VidiU Go seamlessly connects with both consumer and professional cameras, in addition to popular video switchers from Newtek, Roland, vMix, and more.

Instant Live Streaming

Sometimes you need to go live in a pinch so Teradek have simplified the boot up and configuration process so you can be up and running in no time. Quickly set your streaming parameters from VidiU Go’s web and OLED interface, or pre-configure your device with the free VidiU app for iOS and Android. Once powered on, VidiU Go is ready to stream in under 10 seconds.

HEVC Compression

VidiU Go includes both H.264 and HEVC compression, allowing you to choose the technology best suited to your project. HEVC video compression offers the same video quality as H.264 at half the required bandwidth, which makes it perfect for slow Ethernet and WiFi connections or saving on data costs when streaming over cellular networks.

Stream Over Bonded Networks

VidiU Go was designed to perform in the most challenging production environments, which is why Teradek have included the very same bonding technology found in Teradek's high end broadcast systems. Never drop another live broadcast by streaming over the combined bandwidth from Ethernet, WiFi, and up to two 3G / 4G / LTE modems, or use several iPhone and Android smartphones as hotspots for even more bandwidth redundancy.

Broadcast Quality Modems

Node is Teradek's cutting-edge, broadcast grade 4G / LTE modems that offer 2 to 3 times the performance of carrier-branded modems while fitting seamlessly to the sides of the VidiU Go chassis.

Video
Video Inputs 1x HDMI Type A receptacle (non-HDCP sources)
1x 3G-SDI (75 Ω BNC)
Bonding
Bonding Simultaneous bonding over up to 8 network ports:
2 x VidiU Nodes
WiFi
ethernet
Up to 4 cellphones (iPhones or Android)
Requires Core or Sharelink subscription.
Supported Resolutions
Supported Resolutions 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
576i/50
576p/50 (HDMI only)
480i/59.94/60
480p/59.94/60 (HDMI only)
Video Processing
Video Compression H.264: base/main/high profile up to level 4.2
H.265: main profile up to level 4.1
Supported Video Bitrate 500 Kbps to 12 Mbps
Supported Video Bitrate Details Best Quality: 12 Mbps + 256 kbps audio
HD+: 8 Mbps + 256 kbps audio
HD: 5 Mbps + 192 kbps audio
High: 3 Mbps + 192 kbps audio
Medium: 1.5 Mbps + 128 kbps audio
Low: 800 kbps + 128 kbps audio
Mobile: 500 kbps + 96 kbps audio
Graphics Title
Scoreboard
Timer
Bugs/watermarks/logos
Test Pattern Generator Support Yes
Video Format Conversion Support Built-in Video Scaler and DeInterlacer
Color Correction None
Protocol Support
Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols RTMP, Live:Air
Software Or Platform Integration Facebook, YouTube Live, Vimeo, Persicope, Twitch, Wowza, Ustream, and Livestream
Audio Processing
Audio Compression Audio compression: AAC-LC
Supported Audio Bitrate Details TBD
Inputs
Audio Input Embedded HDMI audio input, 2-Channel/Unbalanced,
Embedded SDI audio input, 2-Channel/Unbalanced,
3.5mm TRS analog line-in
Outputs
Audio Output 3.5mm TRRS headphone output/mic-in, adjustable volume
Physical
Dimensions 4.9" W x 3.1" D x 1.3" H [124 x 80 x 33mm]
Weight 13.6oz [386g]
Construction Machined aluminium and ABS Plastic
Mountability 1/4" 20 mounting hole with hotshoe adapter
Interfaces
Http WebUI for Configuration and Control
Configuration Interfaces OLED display with joystick navigation buttons
Feature-rich WebUI for configuration and control
Switches On/Off and reset switch
Recording Storage Micro SD/SDHC (classs 6 and above) formatted FAT32,
USB formatted FAT32
Mobile App VidiU App for iOS and Android devices
Usb Interface Functionality 2x powered USB 2.0 host ports
Network
Ethernet RJ45, 10/100 BASE-T
Wireless WiFi: Dual Band MIMO 802.11 ac/a/b/g/n
Usb 2 x USB for 3G/4G modem support
Rf Channel Selection None
Power
Power Input USB-C connector
Power adaptor and USB-C cable included
Battery Internal Rechargeable Li-polymer Battery (3.7V, 5000mAh),
up to 2.5 hour duration (streaming over WiFi)
Nominal Power Consumption 6.5W (while charging: up to 10W)
