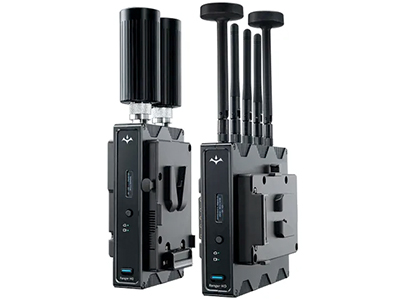

Teradek Ranger HD TX/RX (V-Mount)

Code:

Ranger is the world’s first zero-delay (< 1 ms) wireless video system to transmit uncompressed HD HDR video up to 1.5km (5,000 ft.) line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of incredible video quality and wireless integrity.

For purchasing information

Enquire Now

Ranger is the world’s first zero-delay (< 1 ms) wireless video system to transmit uncompressed HD HDR video up to 1.5km (5,000 ft.) line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of incredible video quality and wireless integrity.

Features

Uncompressed 1080p HDR Video

10-bit, 4:2:2, Patented JSSC Technology

Flexible Operating Frequencies

4.9 to 6.0 GHz with 5 MHz Fine Tuning Intervals

Power Through Interference

Our patented Joint Source Channel Coding (JSCC) technology, utilizing MIMO and OFDM, enables the transmission of uncompressed, 10-bit, 4:2:2 video at less than 1 millisecond of delay. Ranger’s exclusive RF design is UNII-5 ready and utilizes 40 MHz / 20 MHz channels with far greater efficiency than H.264 / HEVC encoding solutions and offers better performance in the noisiest environments.

Secure Video Transmission

AES-256 Encryption

Multicast Capable

Up to 6 Receivers Simultaneously

Easy Smartphone Configuration

Command your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android. Pair transmitters and receivers with the touch of a button, monitor channel interference, and set operating frequencies directly from the app, no cables needed!

Ranger HD Transmitter (V-Mount)


Video
Video Inputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Color Sampling SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
Delay Tx To Rx <0.001sec
Input Cross Conversion Yes, HDMI to SDI
Supported Resolutions
Supported Resolutions 1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Video Processing
Video Compression Uncompressed
Audio Processing
Audio Format 48kHz 24-bit PCM
Inputs
Audio Input Embedded SDI/HDMI Audio Input (2 Channel)
Physical
Dimensions 5.9” x 3.6” x 1.2” (149 x 91 x 30mm)
Weight 19.1oz (544g)
Range Up to 1500 ft, line of sight
Power
Power Input 2-Pin Circular locking connector 7-28 VDC
Battery V mount battery plate
Battery Runtime 19 Watts
Nominal Power Consumption 0-40℃

Ranger HD Receiver (V-Mount)

Video
Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 2)
1 x HDMI 2.0 Type-A receptacle
Color Sampling SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
Delay Tx To Rx <0.001sec
Supported Resolutions
Supported Resolutions 1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Video Processing
Video Compression Uncompressed
Video Format Conversion Support Yes, Framerate and Resolution Scaling
Audio Processing
Audio Format 48kHz 24-bit PCM
Outputs
Audio Output Embedded SDI/HDMI Audio Output (2 Channel)
Physical
Dimensions 133.74mm x 139.2mm x 30.10mm (5.3” x 5.5” x 1.2”)
Weight 23 oz (656g)
Range Up to 1500 ft, line of sight
Power
Power Input 2-Pin circular locking connector 6-28V DC
Battery V mount battery plate
Battery Runtime 15 Watts
Nominal Power Consumption 0-40℃
