Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit Teradek, featuring the upgraded MOTR.S lens motor.
Key Features
-
MDR.X 3-Channel Lens Control Receiver
-
MOTR.S Lens Motor
-
CTRL.3 Wireless Lens Controller
-
Pre-Marked Focus Rings, Iris Strips
-
Motor, Controller, USB & Power Cables
-
LP-E6 Battery with Charger
-
Mounting Brackets, Neck Strap
-
Hard-Shell Case with Custom Foam

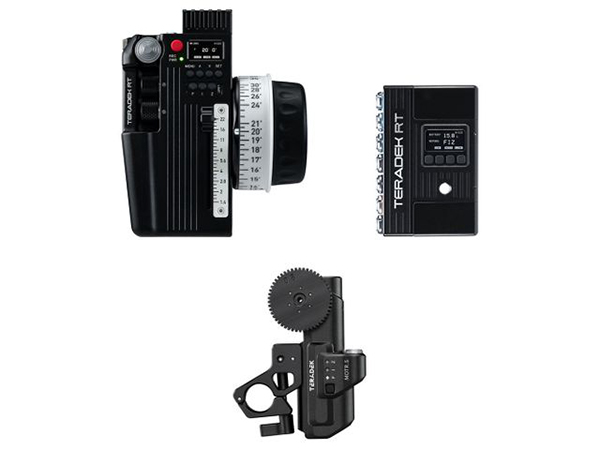

Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit Teradek, featuring the upgraded MOTR.S lens motor. The kit includes a CTRL.3 wireless lens controller, an MDR.X 3-channel wireless receiver, and the compact MOTR.S. The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments. Other accessories include six imperial focus overlay mapping disks, five metric focus overlap mapping disks, and RT CTRL iris strip sliders. Easily set up your kit thanks to its included cables, mounting brackets, and LP-E6 battery. An extra-large, hard-shell case with custom foam allows you to take the entire kit on the go. Read more below about the items included in this kit.
Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth
Connect this to your camera's lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.
An integrated OLED display allows you to easily set your device and see the settings, and you can also use the available Teradek RT app to manage, update, and configure the device. This ultracompact, lightweight unit weighs 4.8 oz and is powered via a 2-pin LEMO connector requiring 7 to 17 VDC.
Multiple Inputs/Outputs
- Three motor ports for focus, iris, and zoom
- Two auxiliary inputs for wired control (via Teradek RT thumbwheel/zoom rocker)
- One cam output for RED DSMC2 camera control
Camera Control - Run/Stop control, including but not limited to:
- ARRI ALEXA, ALEXA Mini, AMIRA, etc.
- Blackmagic
- Canon C100, C300 (MkII+), C500
- Panasonic VariCam
- Phantom
- RED DSMC2, DSMC, ONE
- Sony F5, F55, FS7 (MkII+)
RED DSMC/DSMC2 camera control:
- EF/AF focus/iris
- Shutter
- ISO
- Button features 2x magnification, edge, and focus assist
Compact and Lightweight - The unit's small form factor makes it perfect for all camera setups, especially those on gimbals, handheld rigs, cranes, drones, and other movement rigs.OLED DisplayEach receiver includes an on-unit OLED display with push buttons for configuring motor axes, as well as displaying status readouts including wireless channels, battery voltage, and more.Wireless RangeRT FHSS
- Line-of-sight: Up to 5000' (in USA/FCC mode)
- Indoors: Up to 492'
Bluetooth 5
- Theoretical maximum range of 800' (actual range will vary)
Teradek RT App - Manage, update, and configure every piece of your Teradek RT system via Bluetooth 5 with the Teradek RT app for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware, and much more from the convenience of your smartphone or tablet.
Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
For precise lens control with your Teradek RT motors and receivers, the Teradek CTRL.3 Three-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.3 has an outdoor wireless range of 5000' and an indoor wireless range of 500'. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.
The large focus knob, flexible mounting options, OLED display for configuration and lens data, and its lightweight design make the CTRL.3 accessible and easy to use. It's powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of usage time. Features include a lens mapping firmware update to utilize the included pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.3 comes with five white discs Type-B, a 3' USB cable, a SmallHD monitor interface cable, a large case, six pre-marked focus rings, and four Iris strip sliders.
