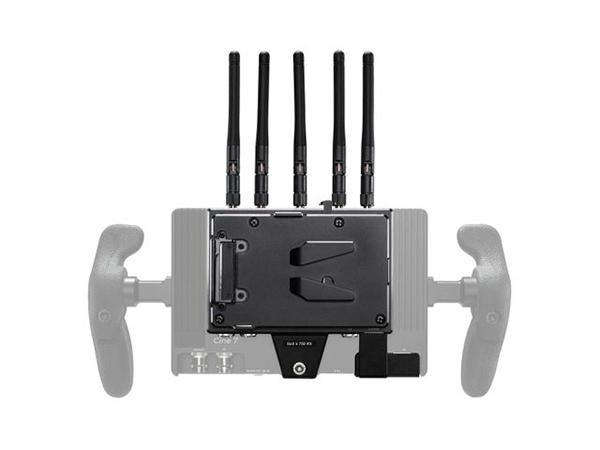

Teradek Bolt 6 Monitor Module 750 - RX (V-Lock)

Code: KAY/53.10-2199-V7
$3,600.00

Receive lossless HD video from up to 750'(228m) line-of-sight with the Bolt 6 RX 750 Monitor Module Teradek.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

What's In The Box?

  • Teradek Bolt 6 RX 750 Monitor Module for Smart 7 Series (V-Mount)
  • V-Mount Battery Plate
  • 5 x Antenna
  • HDMI to HDMI Block Adapter
  • 1/4"-20 Light Stand Adapter
  • Hex Wrench Set
  • Screw Socket Head Set
  • Limited 1-Year Warranty
  • Receive lossless HD video from up to 750'(228m) line-of-sight with the Bolt 6 RX 750 Monitor Module Teradek.

    Key Features

    • Supports New 6 GHz Frequency Band
    • Receive HD Video from up to 228m LoS
    • V Mount Battery Plate
    • For SmallHD Cine 7/Indie 7/702 Touch
    • Receive up to 4K30 Video, Zero Delay
    • Output Video up to 4K30 via HDMI
    • Compatible with Any Bolt 4K Transmitter
    • AES-256 Encryption, 5 x Antennas
    • Bluetooth Mobile App, Spectrum Analyzer

    Receive lossless HD video from up to 750'(228m) line-of-sight with the Bolt 6 RX 750 Monitor Module Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

    The module can also simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

    The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
