Transmit and receive lossless HD video from up to 750'(228m) line-of-sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit Teradek.

Key Features

• Supports New 6 GHz Frequency Band
• Transmits up to 228m Line of Sight
• Supports up to 4K30 Resolution Input
• 3G-SDI/HDMI Inputs & Outputs
• Transmit up to 4K30 Video
• V Mount Battery Plates
• 10-Bit 4:2:2 Support, No Delay
• Compatible with Bolt 4K LT TX/RX Units
• AES-256 Encryption, 7 x Antennas
• Bluetooth Mobile App, Spectrum Analyzer

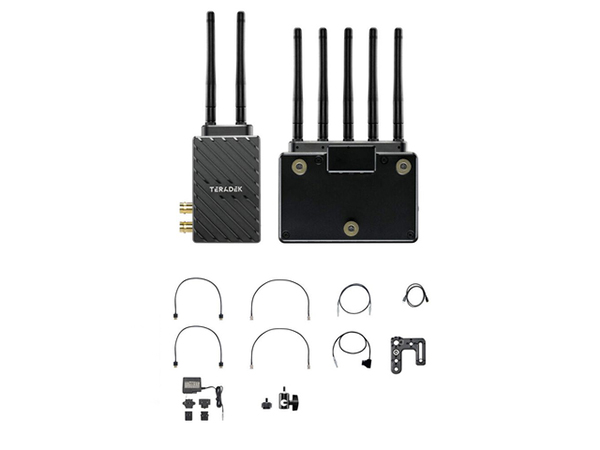

Transmit and receive lossless HD video from up to 750'(228m) line-of-sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power each unit with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The transmitter sends up to 4K30 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 4K LT units are all cross-compatible, so you can transmit to different Bolt 6K or 4K series receiver models. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

The system also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are multiple mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system as well as additional cables and mounting options.
