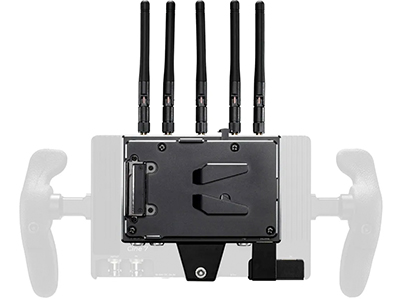

Teradek Bolt 4K RX Monitor Module for Cine 7 & 702 Touch (V-Mount)

Code:

Receive lossless HD video from up to 750' line-of-sight with the Bolt 4K RX Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7 or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI 2.0 port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.

For purchasing information

Enquire Now

Receive lossless HD video from up to 750' line-of-sight with the Bolt 4K RX Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7 or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI 2.0 port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.

Features

  • Video: Up to 4Kp30 / 1080p60
  • Range: 750 ft.

Integrated Hardware Addition to SmallHD Cine 7 and 702 Touch Monitors

RX Module easily attaches to the back of Cine 7 and 702 Touch. Includes a Gold Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.

True HDR

Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Universal Cross-Compatibility between all Bolt 4K Devices

Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Camera Metadata

Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

  • Outputs: HDMI 2.0
  • Compatibility: All Bolt 4K Series TX Devices

Zero-Delay 4K Wireless Video

Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

Output: 1x HDMI 2.0 (up to 4Kp30)

Improved Wireless Performance

Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Bolt App for Android and Apple iOS

Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
