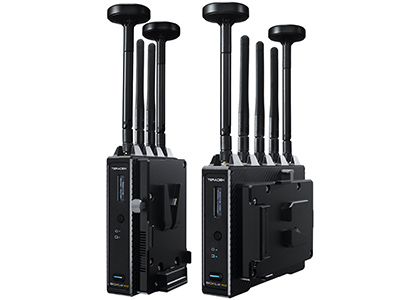

Teradek Bolt 4K Max

Code:
The Bolt 4K MAX elevates the standard for all cable-free workflows. Incredible wireless image quality. Lossless real-time transmission. More reliable, longer range, and a new mobile app for remote configuration.

For purchasing information

Enquire Now

Key Features

  • Includes: 1 TX & 1 RX
  • Video: Up to 4K60FPS
  • Range: up to 3000 ft.
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0
  • Multicast: Up to 6 RXs
  • Compatibility: Bolt 4K 750, Bolt 4K 1500

Bolt 4K MAX is the most reliable, highest performance wireless video system Teradek have yet created. Featuring exclusive technology found only in this model, the MAX is designed to be your mission critical wireless workhorse.

Transmit up to an 3,000 ft line of sight ( or 5,000 ft line of sight with the next-generation Array 4K Panel Antenna, included with the Teradek Bolt 4K Max Deluxe Kit).

Fixed Frequency Mode locks onto your designated 5GHz channel for enhanced performance in challenging RF environments.

A unique antenna design provides a clearer wireless signal with faster reconnection times over long distances.

Features

Extreme Range

Transmit up to an 3,000ft. (900m) line of sight with the next-generation Array 4K Panel Antenna.

Interference Resistant

Fixed Frequency Mode locks onto your designated 5GHz channel for enhanced performance in challenging RF environments.

Maximum Performance

A unique antenna design provides a clearer wireless signal with faster reconnection times over long distances.

Unlimited Receivers

Broadcast Mode supercharges your wireless link and support for unlimited simultaneous receivers.

120 FPS Support

Transmit up to 1080p120 for high-speed camera applications.

Universal Compatibility

Flexibility on set is crucial, so we’ve designed Bolt 4K to be universally compatible with any 4K transmitter and receiver. That means a 750 model will transmit to a 1500, MAX and vice versa, all while retaining perfect image quality and any extended metadata.

Bolt 4K MAX TX

Video -

Video Inputs 1 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
1 x HDMI Type-A receptacle (accepts HDMI 2.0 or HDMI 1.4)
Video Outputs 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ω
Sdi Ancillary Data Support Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Input Cross Conversion Yes, HDMI to SDI
Delay Tx To Rx <0.001sec

Supported Resolutions -

Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)

Video Processing -

Video Compression Visually Lossless
Video Format Conversion Support Connect an HD source to the Tx and get a 4K signal out of Rx
Connect a 4K source to the Tx, get HD resolution out of Rx
You can also mix & match from a single source:
4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
Input/output configurations are controlled directly on units or via Bolt 4K app
Color Correction None

Audio Processing -

Audio Format 48kHz 24-bit PCM

Inputs -

Audio Input Embedded SDI/HDMI Audio Input (2 Channel)

Physical -

Dimensions 132 x 91 x 27 mm
Weight Bolt 4K Tx without antennas (no battery plates) = 360g
Bolt 4K Tx with 4x antennas (no battery plates) = 408g
Bolt 4K Rx without antennas (no battery plates) = 440g
Bolt 4K Rx with 5x antennas (no battery plates) = 496g
Gold-Mount battery plate set (male+female) = +172g
V-Mount battery plate set (male+female) = +220 g
Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with 1/4"x20 and M3 holes

Interfaces -

Configuration Interfaces OSD with Menu, Joystick Navigation
Switches On/Off Switch
Usb Interface Functionality Upgrade via Micro-USB

Network -

Antennas 4 External 2dBi RP-SMA antennas (included)
Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
DFS Frequencies: 5.270 ~ 5.670 GHz
Channel Bandwidth 14x 40MHz wide channels
Rf Channel Selection Auto, Manual
Manual available for non-DFS Channels
Encryption AES-256, RSA-1024 key exchange
Rf Power 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)
Range Up to 1500 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location

Power -

Power Input 2-Pin Circular locking Connector 7-28V DC
Battery None, optional Gold or V mount battery plate
Nominal Power Consumption 20 Watts

Environmental -

Operating Temperature 0-40℃

Bolt 4K MAX RX

Video -

Video Outputs 2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
Sdi Ancillary Data Support Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Input Cross Conversion Yes, HDMI to SDI
Delay Tx To Rx <0.001sec

Supported Resolutions -

Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)

Video Processing -

Video Compression Visually Lossless
Video Format Conversion Support Connect an HD source to the Tx and get a 4K signal out of Rx
Connect a 4K source to the Tx, get HD resolution out of Rx
You can also mix & match from a single source:
4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
Input/output configurations are controlled directly on units or via Bolt 4K app
Color Correction 17x17x17 3D LUT (supports 10-bit color)

Audio Processing -

Audio Format 48kHz 24-bit PCM

Outputs -

Audio Output Embedded SDI/HDMI Audio Output (2 Channel)

Physical -

Dimensions 112 x 139 x 27 mm
Weight Bolt 4K Tx without antennas (no battery plates) = 360g
Bolt 4K Tx with 4x antennas (no battery plates) = 408g
Bolt 4K Rx without antennas (no battery plates) = 440g
Bolt 4K Rx with 5x antennas (no battery plates) = 496g
Gold-Mount battery plate set (male+female) = +172g
V-Mount battery plate set (male+female) = +220 g
Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with 1/4"x20 and M3 holes

Interfaces -

Configuration Interfaces OSD with Menu, Joystick Navigation
Switches On/Off Switch
Usb Interface Functionality Upgrade via Micro-USB

Network -

Antennas 5 External 2 dBi antennas (included) or optional Array Panel Antenna
Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
DFS Frequencies: 5.270 ~ 5.670 GHz
Channel Bandwidth 14x 40MHz wide channels
Rf Channel Selection Auto, Manual
Manual available for non-DFS Channels
Encryption AES-256, RSA-1024 key exchange
Rf Power 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
Range Up to 1500 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location

Power -

Power Input 2-Pin Circular locking Connector 6-28 VDC
Battery None, optional Gold or V mount battery plate
Nominal Power Consumption 18 Watts

Environmental -

Operating Temperature 0-40℃
