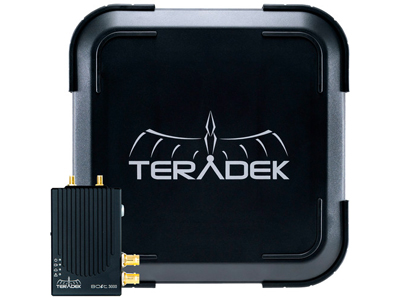

Teradek Bolt 10K Transceiver Set (V-Mount)

Code:

Bolt 10K is an ultra high-performance, zero-delay video receiver with a range of 10,000 feet.

For purchasing information

Enquire Now

The Teradek Bolt 10K Wireless Receiver can receive an HD or SD video signal from a Teradek Bolt 3000 transmitter up to 10,000' away. Both SDI and HDMI outputs are available on the receiver, and incoming HDMI or SDI signals can be converted to either output. SDI metadata from many popular camera brands is supported, and passed through to outboard monitors or recorders. As part of the Bolt series, the Bolt 10K receiver works seamlessly alongside Bolt 3000, Sidekick II, and 703 Bolt gear.

Bolt 10K receivers support 1080p60 4:2:2 video and with a newly-designed chassis, hassle-free Tx/Rx pairing, robust range and visually lossless HD quality make this our strongest unit we’ve ever built.

Bolt 3000 XT TX

The Bolt 3000 XT Transmitter sends pristine 1080p60 video wirelessly and instantly to monitors up to 3000 ft. away. Each transmitter can support up to 4 monitor receivers, and comes with additional features such as wired/wireless pairing, rapid reconnect, built-in frequency analyser, rapid reconnect and metadata, timecode & start/stop transport.

Features

  • Includes 3000 TX & 10K RX
  • V-Mount bracket Built-In
  • Dual input (SDI + HDMI) and SDI loop on the TX
  • HDMI and Dual 3G-SDI outputs on RX
  • Up to 3km (10,000ft) Range
  • Fully integrated panel antenna
Inputs Transmitter:
SDI: 1 x BNC 3G/HD/SD-SDI
HDMI: 1 x HDMI type A
Outputs Transmitter:
SDI: 1 x BNC loop out

Receiver:
SDI: 1 x BNC 3G/HD/SD-SDI
HDMI: 1 x HDMI type A
Other I/O Transmitter:
1 x USB micro-B (firmware)

Receiver:
1 x USB micro-B (video stream output, firmware)
Color Sampling SDI: YCbCr 4:2:2, 10-bit (8-bit with format conversion)
HDMI: RGB 4:4:4, 8-bit
Resolution Support 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 59.94 (HDMI only)
576i: 50
480i: 59.94
RF Power Transmitter: 22 dBm EIRP (with 2 x 5 dBi antennas)
Receiver: 17 dBm EIRP (with 1 x 2 dBi antenna)
Power Input Transmitter: 2-pin, 7-28 VDC
Receiver: 2-pin, 7-28 VDC
Power Consumption Transmitter: 7.5 W
Receiver: 8.5 W (measured at 1080p60)
Operating Temperature 0 to 50°C
Dimensions Transmitter: 1 x 2.6 x 6.6 x 10.2 cm
Receiver: 23.6 x 23.6 x 6.6 cm
Weight Transmitter: 226 g
Receiver: 1.2 kg
