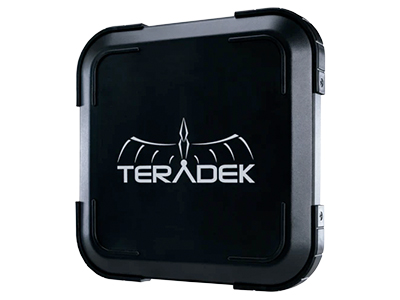

Teradek Bolt 10K Receiver (V-Mount)

Code:

Bolt 10K is an ultra high-performance, zero-delay video receiver with a range of 10,000 feet.

For purchasing information

Enquire Now

Overview
Specifications

What's In The Box?

1x SDI (BNC to BNC) Cable
1x HDMI 18in Cable (Type A to Type A)
1x Protective SKB Case
1 x Lightstand Adapter (3/8 inch)
1x PSU 2-pin Connector
1x USB 3.0 Cable A to Micro B
1-Year Warranty

The Teradek Bolt 10K Wireless Receiver can receive an HD or SD video signal from a Teradek Bolt 3000 transmitter up to 10,000' away. Both SDI and HDMI outputs are available on the receiver, and incoming HDMI or SDI signals can be converted to either output. SDI metadata from many popular camera brands is supported, and passed through to outboard monitors or recorders. As part of the Bolt series, the Bolt 10K receiver works seamlessly alongside Bolt 3000, Sidekick II, and 703 Bolt gear.

Features

Receives Video from up to 10,000' Away
3G-SDI and HDMI outputs
V-Mount Battery Bracket
Fully integrated panel antenna
Works alongside Bolt 3000, 703 Bolt, and Sidekick II receivers

Outputs	3G/HD/SD-SDI: 1 x BNC HDMI: 1 x HDMI type A USB: 1 x USB 3.0 micro-B
Color Sampling	SDI: 10-bit 4:2:2 (8-bit with conversion enabled) HDMI: 8-bit 4:4:4 RGB
Latency	< 0.001 sec (without format conversion)
Range	Up to 10,000' / 3048 m
Wireless Frequency Range	Non-DFS Frequencies: US: 5.19-5.23 GHz, 5.755-5.795 GHz EU/JP: 5.19-5.23 GHz DFS Frequencies US: 5.27-5.31 GHz, and 5.51-5.67 GHz EU/JP: 5.51-5.69 GHz
Resolution Support	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 NTSC PAL
Video Processing	10-bit CDL/1024 1D LUT 10-bit 33-point 3D LUT
Audio Sampling	24-bit, 48 kHz
Power	Input: 2-pin LEMO Voltage: 7-28 VDC Power Consumption: 8.5 W (1080p60)
Operating Temperature	32 to 122°F / 0 to 50°C
Dimensions	9.3 x 9.3 x 2.6" / 23.6 x 23.6 x 6.6 cm
Weight	2.6 lb / 1.2 kg
