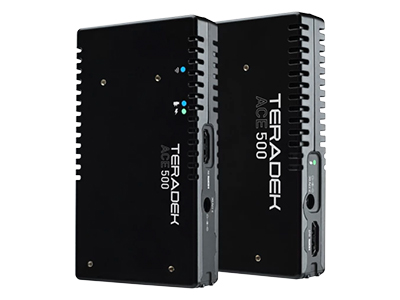

Teradek ACE 500 HDMI Wireless TX/RX Set

Code: KAY/53.10-1805
$1,500.00
Ace 500 is a compact, lightweight and powerful wireless video system designed for professionals on a budget.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Usually ships in 3-5 days

What's In The Box?

  • 1x Ace 500 TX
  • 1x Ace 500 RX
  • 1x Mini-USB to USB, 18" Cable
  • 1x P-Tap to R/A Barrel, 18" Cable
  • 1x Ultra Thin HDMI to HDMI 18"
  • 1x Power Supply
  • Ace 500 is a compact, lightweight and powerful wireless video system designed for professionals on a budget.

    With the Teradek Ace 500 HDMI Wireless Video Transmitter and Receiver Set you'll transmit and receive visually lossless, uncompressed 1080p60 signals with <1 ms latency and AES-128 encryption at up to a 500' line of sight. The Ace 500 transmitter and receiver are also compatible with existing Bolt systems such as the Bolt 500, XT, and LT, as well as SmallHD monitors with integrated Bolt wireless technology. The transmitter can send a signal simultaneously to up to four receivers.

    The Ace 500 units feature HDMI type A connectors, and standard HDMI cables are included to get connected right away. Power to the receiver is provided using the included power adapter, and a D-Tap to DC barrel connector is included with the transmitter to use with a separately available power source. Sony L-Series, BP-U, BP-9, or Canon LP-E6 battery mounts can also be purchased for both units. The units can be secured to a mount or stand via built-in 1/4"-20 or 4-40 holes.

    Features

    Zero-Delay Wireless Video

    Transmit uncompressed 1080p60 video to receivers up to 500 ft. away with less than 1ms of delay.

    Compatibility

    Ace 500 transmitters and receivers are compatible with all current Bolt 500, LT & XT models and integrated SmallHD Bolt monitors.

    Weight

    The transmitter weighs just 126g while the receiver weighs 146g, making them perfect for gimbals and camera rigs of any size.

    Powering Options

    Keep your Ace powered with optional battery plates* attached directly to your transmitter and receiver.

    *Available in Sony L-Series, BP-U, BP-9 and Canon LP-E6.

    Multiple Receivers

    Send video from the transmitter to up to 4 receivers within 500 ft.

    Mounting Options

    Both Ace TX & RX include 1x 1/4-20" and 2x 4-40" mounting points.

    Reliability

    Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most.

    Specifications

    Video Inputs 1 x HDMI (Type A receptacle)
    Video Outputs none
    Color Sampling HDMI: RGB 4:4:4, 8-bit
    Delay Tx To Rx <0.001sec (without format conversion)
    Supported Resolutions 1080p 23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)
    Video Compression Visually Lossless
    Audio Compression 48kHz 24-bit PCM
    Audio Input Embedded Audio Input
    Physical Dimensions 6.7 x 11.9 x 1.5 cm
    Weight 126g
    Construction Aluminum and ABS plastic
    Mountability 1/4"-20 mounting threads
    2x 4-40 mounting holes
    Switches Reset/Pairing Button
    Desktop App Feature-rich Bolt Manager application for OSX & Windows
    Usb Interface Functionality Upgrade via Mini-USB
    Antennas Internal Antennas
    Wireless Non-DFS Frequencies:
    US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
    EU & JP: 5.19 ~ 5.23 GHz
    DFS Frequencies:
    US: 5.27 ~ 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 ~ 5.67 GHz
    Rf Channel Selection Auto only (NOT configurable)
    Encryption AES-128
    Rf Power up to 17 dBm
    Range Up to 150m (500 ft) line of sight
    Unicast Multicast Unicast / Multicast
    Noise Rejection Coexists with WiFi and 5GHz cordless phones
    Power Input Barrel Connector 7-17 VDC
    Power Output None
    Nominal Power Consumption 4.8 Watts (Measured at 1080p60)
    Operating Temperature 0 ~ 40 deg-C
