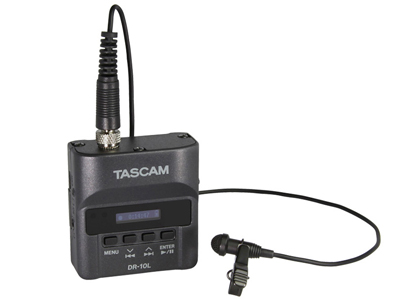

Tascam DR-10L Miniature Recorder

Code: CMI/DR-10L

The TASCAM DR-10L is an ultra-compact, incredibly convenient digital recorder/lavalier microphone combo. For added flexibility, the included wired lavalier microphone is affixed via a 1/8" screw-down lock connector compatible with most Sennheiser lavalier mics and mics with the same connector.

For purchasing information

Enquire Now

What's In The Box?

  • DR-10L micro linear PCM recorder
  • Lavalier microphone
  • Microphone clip and windscreen
  • USB cable (A type-micro B type)
  • Belt clip Custom pouch

The TASCAM DR-10L is an ultra-compact, incredibly convenient digital recorder/lavalier microphone combo. For added flexibility, the included wired lavalier microphone is affixed via a 1/8" screw-down lock connector compatible with most Sennheiser lavalier mics and mics with the same connector.

Ultra-Compact Recorder/Lavalier Mic Combo

The DR-10L is compact - fitting in the palm of the hand and lightweight at 51 grams. It is ideal for use as an invisible recorder at film shoots, interviews, stage performances and more. The included durable belt clip allows several options depending on the situation. For example, you can attach the unit to a belt and hide it under a jacket.

Simple and easy setup

A dedicated lavalier microphone is included that is a perfect match with the recorder. The lavalier microphone captures a wide range of sound levels with a sensitivity of -42dBV/Pa, and 115dB SPL maximum input sound pressure. A few settings on the simple panel are needed to start recording, and the screw lock connection is always secure.

Long Battery Life With a Single AAA Battery

The DR-10L is powered by a AAA battery that runs approximately 10 hours (with alkaline battery*) and provides all-day-long performance with minimal concern for changing out the battery.

* The battery life varies depending upon battery type. When using the device with a headphone connected, battery life will be reduced.

iZotope RX Elements Bundle

The DR-10L is bundled with a free full version of RX Elements, iZotope’s groundbreaking audio repair and noise reduction tool. The DR-10L/RX Elements bundle offers a powerful recording and editing workflow solution to live productions where ambient noise and environmental distractions are common post-production challenges, including weddings, on-location films, and documentaries, to name a few.

Multiple Functions, Including Dual-recording for Simultaneously Creating a Safety Track at a Lower dB Level

Many times, there is only one chance to capture the desired audio. DR-10L has functions to prevent issues related to recording level settings, including a dual recording function that allows you to set the recording level as high as possible while simultaneously recording a backup track at a lower level.

The unit has five different gain levels in addition to an automatic gain control function. There is also a limiter function.

Linear PCM recorder with high-quality audio

Designed to capture high-quality audio at 44.1kHz/48kHz, 16/24-bit. Perfect for television, film and stage performances - as well as lectures and other professional recording applications. Records in WAV/BWF recording format, selectable from mono or poly (stereo file with the same data on both left and right channels).

Also, file name format can be set to use a user-defined word or the date.

OLED Display With High Visibility for Better Operation

You can check the battery level, recording status, and level meter on the easy-to-read organic EL display. Because of this the DR-10L does not need LED lights that can be seen during production, especially in dark environments.

Headphone Output Enables Input Monitoring

Even though this unit is compact, it can play back recorded files. You can also connect headphones to check recorded data right away, and to monitor the input during recording.

Recording media microSD card (64MB to 2GB),
microSDHC card (4GB to 32GB)
Media discharging Push-Push type (Guard cover mounted)
Recording format
V1.00
WAV 44.1k/48k Hz, 16/24-bit mono/poly WAV (BWF format)
V2.00
WAV 44.1k/48k Hz, 16/24-bit mono/poly (BWF format)
MP3 44.1k/48k Hz, 24-bit mono/poly
Recording 128k/192k bps
Playback 32k to 320k bps
Analog audio Inputs
Connector 1/8" (3.5mm) TRS jack with screw lock
Microphone sensitivity –42dBV/Pa
Maximum input sound pressure 115dB SPL
Maximum input level –15dBu (Gain L)
Minimum input level –55dBu (Gain H+)
MIC input gain +14dB to +38dB
Input impedance 33kΩ (Mic bias off)/ 2kΩ (Mic bias on)
Phones
Connector 1/8" (3.5mm) stereo mini jack (Dual Mono Output)
USB
Connector Micro-B type 4pin
Protocol USB2.0 HIGH SPEED mass storage class
Power 1 AAA battery (Alkaline battery/ Ni-MH battery / Lithium battery),
USB bus power
Power consumption 0.45W
Battery operation time WAV, 48kHz, 24-bit Rec, without headphones, limiter: OFF , Dual Rec: OFF, JEITA Rec
*All times are approximate.
Alkaline battery (EVOLTA) 10 hours
Ni-MH battery (eneloop) 8 hours
lithium battery (Energizer ULTIMATE LITHIUM) 15.5 hours
Battery (RTC) Lithium × 1(built in with soldering)
Dimensions (W×:H×D) 2.05" × 2.19" × 0.96" / 52 × 55.6 × 24.4 mm
Weight 2.2 oz. / 63 g (including battery)
1.8 oz. / 51g (excluding battery)
Operating temperature 32˚F to 104˚F / 0˚C to 40˚C
