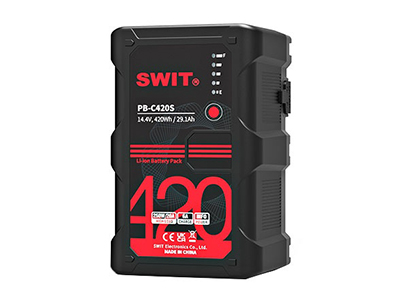

SWIT PB-C420S 420Wh Large Capacity V-mount Battery

Code: SWI/PB-C420S
$1,135.00

The PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

Key Features

  • 14.4V, 420Wh/29.1Ah large capacity
  • 250W/20A constant load, 305W peak load
  • 100W/6A fast charging support
  • 2x D-tap power sockets, 150W load
  • 5-LED digital power indicators
  • SONY/RED viewfinder power info display
  • Multiple circuit protections

ONE BATTERY, ONE DAY

PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

14.4V, 420Wh, 2x D-tap

PB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.1Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.

250W Constant High Load

PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

100W 6A Fast Charging

PB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Reliable SWIT Quality

The PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.

Specifications
Nominal Voltage 14.4V
Capacity 420Wh/29.1Ah
Power Load 250W / 20A constant, 305W peak
Charging DC 16.8V, 6A
D-tap 2x D-tap 150W/10A in total
Mount Type V-mount
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 2.07kg
Dimensions 155×101×80mm
