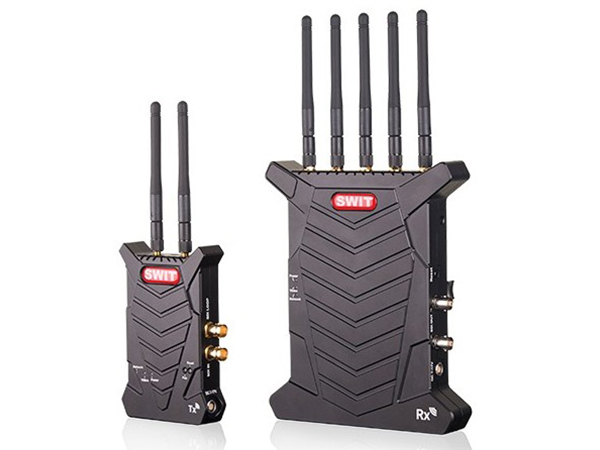

CW-S300 wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports uncompressed 3G/HD-SDI to transmit 300 meters (Line-of-Sight) distance, and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

Input & Output

• The Transmitter (Tx) has 2 omni antennas, supports
• 1x 3G/HD-SDI input
• 1x 3G/HD-SDI loop output
• 1x 7-17V 4-pin LEMO DC input

The Receiver (Rx) has 5 omni antennas, supports

• 2x 3G/HD-SDI output
• 1x 7-17V 4-pin LEMO DC input

SDI formats:

• 1080p60, 1080p59.94, 1080p50
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30;
• 1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30;
• 1080i60, 1080i59.94, 1080i50;
• 720p60, 720p59.94, 720p5

300meters Transmission

3G/HD-SDI non-compressed, ≤1ms latency

In Line-of-Sight, CW-S300 supports non-compressed 3G/HD-SDI 300 meters (1000 feet) transmission, with less than 1 millisecond latency.
