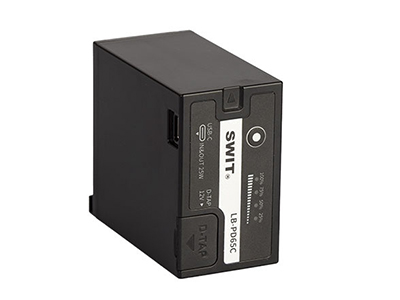

SWIT 7.2V 65Wh Panasonic VBR Compatible Battery

Code: SWI/LB-PD65C
$225.00

The LB-PD65C is a 65Wh large capacity Panasonic AG-VBR59 compatible battery with regulated 12V D-tap output and 25W USB-C in/out, diversity power for camera top devices.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

Key Features

  • Panasonic VBR59/89/118 comparable
  • For Panasonic AU-EVA1, AG-DVX200
  • For Panasonic AJ-PX230/270, UPX360
  • For Panasonic AG-CX350, UX90/180 etc
  • 7.2V nominal voltage Li-ion battery
  • 65Wh / 9.02Ah capacity
  • 30W / 4A constant power load
  • Built-in 12V reg. D-tap output
  • Built-in 25W USB-C input and output
  • 4-level LED power indicator
  • Multiple circuit protections

65Wh Panasonic VBR59 Battery with D-tap and USB-C

LB-PD65C is a 65Wh large capacity Panasonic AG-VBR59 compatible battery with regulated 12V D-tap output and 25W USB-C in/out, diversity power for camera top devices.

65Wh Large Capacity

LB-PD65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A. Compatible Panasonic cameras: AU-EVA1, AG-DVX200, AJ-PX230/270/UPX360 AG-CX350, AG-UX90/180, AG-AC30, etc.

Reg. 12V D-tap Output

The LB-PD65C battery provides a D-tap power output socket of regulated 12V voltage, widely compatible with various kinds of video devices. * The D-tap has 7.2V to 12V (Reg.) conversion and it’ s not allowed to charge input via this D-tap socket.

USB-C 25W Output

Fast Charging iPhone 12/13

LB-PD65C provides a USB-C sockets, supports 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output to fast charge iphone 12/13 and all kinds of USB-C smart phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

USB-C 25W Charging Input

You can also charge LB-PD65C by USB-C charger. Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power input, which means you can fully charge the 65Wh battery within 3.5 hours.

4-level Power Indicator

Press the power check bottom, the 4-level LEDs indicates remaining power percentage.

4-way Charging

LB-PD65C can be charged by Panasonic original charger, and SWIT LC-D421 4-way charger you can charge 4 batteries simultaneously, and fully charging within 5 hours.

Specifications
Nominal Voltage 7.2V
Capacity 65Wh, 9.02Ah
Max power load 30W, 4A
D-tap 12V (reg.) 1.7A, 20W
USB-C 25W input: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A 25W output: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries Panasonic AG-VBR59/89/118G
Compatible Cameras Panasonic AU-EVA1, AV-DVX200, AJ-PX230/270
Panasonic AJ-UPX360, AG-CX350, AG-UX90/180, AG-AC30
Dimension 41×70×83mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 356g
