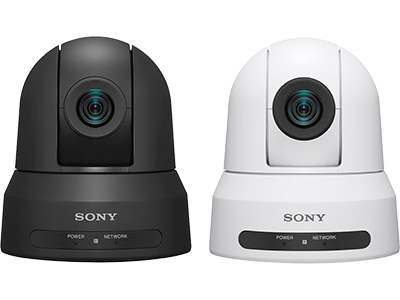

Sony SRG-X120 4K and NDI Capable IP PTZ Camera

Code: SOC/SRGX120
The versatile SRG-X120 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces and medical environments.

For purchasing information

Enquire Now
Capture every point of view with excellent 4K* picture quality and efficient IP production workflow

The versatile SRG-X120 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces and medical environments.

The camera's 1/2.5-type Exmor R CMOS sensor captures up to 4K* resolution images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution 12x zoom lens that offers an expansive approx. 70° wide angle coverage to capture every point of view.

High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Picture Setting File allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC.

* Requires 4K optional license.

Features

Excellent images, even in low light

The sensitive 1/2.5-type Exmor R™ sensor captures high-quality images with very low noise, even in dimly-lit environments.

4K upgrade option

Upgrade to 4K shooting via optional license.

Wide viewing angle

Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approx. 70° and up to 12x zoom capability.

Ideal for lecture caputure

Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of speaker.

High speed movement and Picture Freeze Preset

Accurately capture the presenter's movements with maximum 300°/s pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position – with no uncomfortable transitions for your audience.

Smooth pan-tilt-zoom

PTZ Motion Sync function* allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.

* Requires firmware V2.00.

Simpler installation, lower costs

A single network cable carries camera power, video output and control signals to simplify installation and reduce cabling costs.

Support for NDI®*|HX

NDI®|HX compatibility (via optional license) enables cost-effictive school studio system integration, allowing flexible configuration with other networked NDI®-enabled devices.

Remote viewing

View pictures remotely over the Internet from a web browser, with support for RTSP.

Fast, fuss-free set-up

The new Picture Setting File* function can apply the same camera settings among multiple cameras for fast set-up.

* Requires firmware V2.00.

Image Sensor 1-Chip 1/2.5" CMOS Sensor
Horizontal Resolution (TV Lines) 1000 TV Lines
Sensor Resolution 3840 x 2160 (8.3 MP)
Gain 0 to 48 dB
Minimum Illumination 1.6 Lux at 1/30 Shutter Speed
Shutter Speed 1/1 to 1/10,000 sec
Max Digital Zoom 40x ( in 1080p)
Flip / Mirror Support Image Flip
Optical Zoom Ratio 12x
Focal Length 4.4 to 52.8mm
Field of View Horizontal: 70°
Maximum Aperture f/2 to 3.7
Minimum Focusing Distance Wide: 3.1" / 8.0 cm
Telephoto: 15.7" / 40.0 cm
Focus Control Autofocus
Manual Focus
Output Formats SDI, HDMI, RJ45: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Presets 256 via IP
100 via VISCA
Move Speed Pan: 0.5 to 300°/sec
Tilt: 0.5 to 126°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 110° (-20 to 90°)
Supported Control Protocols IP
RS-422
VISCA
Video Output Connectors 1 x BNC (3G-SDI) Female
1 x HDMI Type A Female
1 x RJ45 Female
Audio I/O 2 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface 1 x RJ45 (RS-422, VISCA) Input
1 x RJ45 (RS-422, VISCA) Output
PoE Support PoE+ 802.3at
Power Connectors 1 x JEITA (10.8 to 13.2 VDC)
Power Consumption 25.5 W
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Tripod Mounting Thread 1 x 1/4"-20 Female
Dimensions 7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm
Weight 3.97 lb / 1.8 kg
