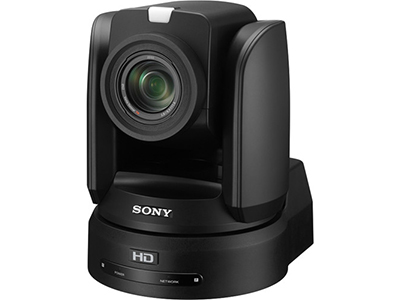

Sony BRC-H800 Full HD PTZ Camera

Code: SOC/BRCH800
The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections

For purchasing information

Enquire Now
Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms, classrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1.0-type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. In Tele Convert Mode, 24x zoom can be further doubled to 48x without losing HD resolution.

Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Features

Enhanced Pan/Tilt/Zoom (PTZ) operation

Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There's also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements. PTZ Trace Memory allows a sequence of camera movements to be memorised and followed whenever required. PTZ Motion Sync smoothly blends separate pan, tilt and zoom movements for seamless, professional-looking transitions. Upto 100 preset positions for pan/tilt/zoom operations.

Broadcast quality Full HD 60p images

The camera's large, back-illuminated 1.0-type Exmor R CMOS sensor delivers uncompromised broadcast quality colour pictures in detail-packed Full HD 60p, capable of capturing sports and other fast-moving action.

Cinematic 24p pictures

The camera can also operate in 24p mode, for video footage with a rich, filmic look.

High quality 12x optical zoom and 24x(HD) with Clear Image Zoom

The high quality Zeiss Vario-Sonnar T lens with 12x optical zoom range covers wide angle shots as well as tight close-ups. Clear Image Zoom* expands this range to 24x (HD) without sacrificing detail. In addition, the Tele Convert Mode can double this range again, up to 48x zoom while maintaining a 1920x1080 resolution.

Excellent low light sensitivity

The BRC-H800 can capture crisp, low noise colour video images in light levels as low as 1.7lx, making it an ideal choice for dimly lit live hall and theater

*Clear Image Zoom is a Sony original intelligent interpolation, which analyzes the input image and increases the resolution of the image.

Remote operation

Pan/tilt/zoom and other camera settings can be controlled using the supplied IR remote commander, or with the optional RM-IP500 Remote Control Unit that can control multiple cameras.

RCP/MSU Connectivity

In an studio environment, BRC-H800 can be controlled via Sony’s Remote Control Panel RCP-1500/1501/1530 and MSU-1000/1500. Connection can be made over IP networks.

Genlock

Genlock simplifies integration with other systems in multi-camera broadcast environments.

Versatile video outputs

Enjoy greater installation flexibility in professional broadcast and AV environments with 3G-SDI (x2) and HDMI video outputs.

Front and rear tally lamps

Ideal for on-air broadcast use, the BRC-H800 features dual tally lamps on the front and rear of the camera body. Brightness of the front tally lamp can be adjusted in two steps.

Always up to date

New camera functionality and performance improvements can be added via firmware updates over IP

Flexible installation

Integration is simplified in a wide range of environments, with PoE+ (Power over Ethernet) to reduce cabling requirements and VISCA control over IP.

Image Sensor 1.0-type back-illuminated Exmor R CMOS sensor
Image Sensor (Number of Effective Pixels) Approx. 14.2 Megapixels
Image Sensor (Total Number of Pixels) Approx. 20.4Megapixels
Signal System 1080/59.94p,1080/59.94i,720/59,94p, 1080/50p,1080/50i, 720/50p, 1080/23.98p 23"
Minimum Illumination (50IRE) 1.7 lux
(50IRE, F2.8, 1/30s, Max.Gain) 78"
Horizontal Resolution 850 TV line
(in 3G-SDI output) (center)
Gain Auto/Manual (-3dB to +33dB)
Shutter Speed 1/10000s to 1/8 (59.94/29.97)
1/10000s to 1/6 (50/25/23.98)
Exposure Control Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
White Balance Auto1/Auto2/One Push/Indoor/Outdoor/Manual
Optical Zoom 12x
Clear Image Zoom 2x
Digital Zoom No
Tele Convert Mode Off, 2x
*1920x1080 only
Focusing System Auto/Manual
Horizontal Viewing Angle Typ. 64.6° (Wide-end)
Focal Length f=9.3 to 111.6mm
F2.8(Wide) ,F4.5(Tele)
Minimum Object Distance 1000mm(Tele)
80mm (Wide)
Pan/Tilt Angle Pan: ±170°
Tilt: +90°/-30°
Pan/Tilt Speed Pan: 0.3° to 60°/s
Tilt: 0.3° to 60°/s
Pan/Tilt Slow Mode Yes
Pan/Tilt Operation Noise NC30 or less*
* Sony measurement conditions
Preset Position 100
PTZ Trace Memory 16
PTZ Motion Sync Yes
Day/Night Yes
Visibility Enhancer Yes
Image Flip On/Off
Picture Profile Preset Yes
ND Filter Off, 1/4, 1/16, 1/64 switchable in menu
Color Gain Yes (15 step)
Color Hue Yes (15 step)
Color Matrix Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW
Gamma Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
Gamma Level Yes (15 step)
Black Level Yes (97 step)
Black Gamma Yes (15 step)
Knee Point Yes (13 step)
Knee Slope Yes (15 step)
Flicker Cancel On/Off
4K Video Output No
HD Video Output 3G-SDI x2 and HDMI
HDMI Color Space YCbCr, 4:2:2
RGB, 4:4:4
Camera Control Interface VISCA RS-422
RJ45(In/Out)
VISCA over IP RJ45
External Sync. Input BNC, 75Ω, HD 3-level sync, SD Black Burst
Power Connector Type IEC60130-10
(JEITA standard RC-5320A)
TYPE4
Power Requirements DC 10.8V to 13.2V,
PoE+ (IEEE802.3at compliant) 484
Power Consumption DC12 V:19.0W (Max)
PoE+:23.0 W (Max) 535
Operating Temperature 0 °C to 40 °C
32 °F to 104 °F 585
Storage Temperature -20 °C to +60 °C
-4 °F to +140 °F 636
Dimensions (W x H x D)*1 Approx. 198 x 260 x 238mm
(without projecting object)
Approx. 7 7/8 x 10 1/4 x 9 3/8 inch
(without projecting object) 686
Mass Approx. 4.3kg
Approx. 9 lb 7.7oz 737
Optional Card Slots Not needed
Body Color Black and White
Size of Screw Hole for Tripod 1/4-20UNC x2
Mountable Angle Less than ±15 degrees
Ceiling Mount Yes
