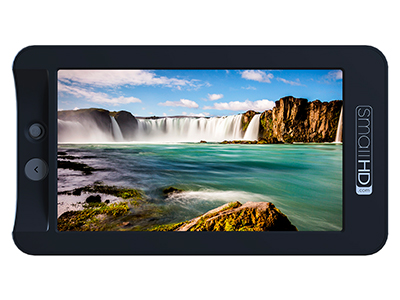

SmallHD 502 Bright Full HD On-Camera Monitor

Item Code:

The compact and daylight viewable 5-inch monitor with HDMI/SDI.

RRP: 0   Save:

For purchasing information

Based off the original 502 monitor, the SmallHD 502 Bright On-Camera Monitor brings a bright 1000 cd/m² panel to the compact platform. While the 5" display is bright it doesn't sacrifice resolution, yet it won't overwhelm a DSLR or mirrorless camera if secured to the accessory shoe. The 1920 x 1080 panel is sharp and can be used to check critical focus and exposure. The wealth of monitoring tools included with this monitor are easily accessible using the innovative PageBuilder OS which utilizes customizable pages to cycle through monitor inputs and outputs, as well as your favorite tools.

The unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. A bumper is included for further protection. At the rear of the display you'll find the SDI and HDMI I/O. Having two of each port allows for cycling two different signals, cross conversion, or sending a signal downstream to another monitor, switcher, or wireless accessory.

Tack sharp and tactfully designed.

Boasting a screen resolution of 1920x1080, the 502 Bright is one of the sharpest 5-inch displays in the world. It’s convenient size and display brightness make it easy to see what’s in focus, even in high ambient lighting conditions.

Lean and rugged build quality.

The 502 Bright offers extreme durability without being exceedingly heavy. Housed in an aircraft grade aluminum unibody with plenty of mounting points, this 5-inch monitor is ruggedly handsome and beautifully designed.

Quality tools with quick accessibility.

With real-time 3D LUTs, Scopes, Waveform, False Color, and Focus Assist/Peaking, the 502 Bright is equipped with SmallHD’s premium tool set and Page Builder operating system. Data driven software tools become easy to access with an intuitive user experience.

Specifications

Display

Panel Type LCD
Size Diagonal 5
Resolution 1920 x 1080
Pixel Density (PPI) 441
Aspect Ratio 16:9
Active Area 5"
Brightness 1000nits
Contrast 1500:1
Color Gamut 100% Rec 709
Color Depth 10-bit Color Processing
Viewing Angle Full 179 degrees
Backlight Type LED

Input Signal Types/Formats

3G-SDI 1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120
HD-SDI 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98,
SD-SDI 576i50,480i59.94
HDMI Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component Not Supported
Composite Not Supported
Audio HDMI and SDI

Output Signal Types/Formats

3G-SDI 1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120
HD-SDI 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98,
SD-SDI 576i50,480i59.94
HDMI Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component Not Supported
Composite Not Supported
Audio Stereo Out (headphones)

Connector Type

SDI 1 SDI (in), 1 SDI (out - selectable)
HDMI 1 HDMI (in), 1 HDMI (out - selectable)
Component Not Supported
Composite Not Supported
Audio 1/8in Mini Stereo Headphone
Power In LP-E6 style Battery X 2
Power Out Micro-USB 5V @ .5A
USB Micro-USB 5V @ .5A

Controls

Primary Control Interface Joystick + “Back” button
Record/Capture Capture button
RF Wireless Remote / External Control Wireless remote

Data I/O

Storage SD Card (full-size)
USB Self Color Calibration

Power

Connector Type LP-E6 Style
Voltage 6.0 - 8.4volts
Power Consumption 7-9 watts
Recommended Power Supply http://store.smallhd.com/store/500-accessories/DCA5-AC-Power
Overload Protection Yes
Battery Types LP-E6

Environmental

Compliance CE, FCC, IC
Operating Temperature 30F to 85F
Storage Temperature 0F to 120F
Height 3.4" (8.64cm)
Width 6" (15.24cm)
Depth/Length 1.1" (2.79cm)
Weight (Item Only without battery) 9.4oz (266.49g)
Weight (Packaged) 16oz (453.59g)
Mount Points (3) ¼-20 thread points (bottom, back & right side)

Software

Pixel Zoom (type) 2x & 4x with smooth pan via joystick
Frame Guides Yes
DSLR Scale Canon, Nikon
Custom Scale Yes
Anamorphic De-Squeeze Yes
Image Rotate(Manual/Automatic) Yes
Image Flip (Manual/Automatic) Yes
Cross Conversion Yes
Focus Assist (Colors) Yes
Peaking Yes
False Color Yes: ARRI, Custom
Zebra Yes: Multiple
Waveform Yes
Vectorscope Yes
PIP No
RGB Parade Yes
Histogram Yes
Horizon Indicator No
Image Capture Yes
Master Recording N/A
Wifi Streaming N/A
Custom LUTS Yes
LUT Creation No
LUT Downstream Yes
LUT Import Yes
Image Overlay Yes
Blue Only No
Audio Meters Yes
