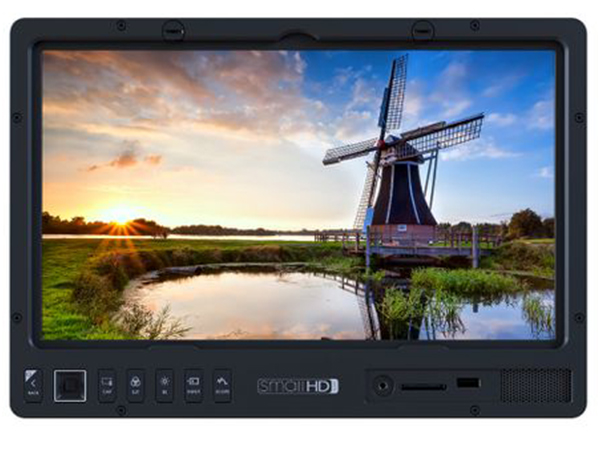

SmallHD 1303 HDR Production Monitor

Code:

The new SmallHD 1300 Series production monitors are the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1300 Series will boldly go where no other production monitor has ever gone before.

For purchasing information

Enquire Now

Overview
Specifications

Featuring HDR preview backed by a 10-bit Color Intelligence engine with calibration capabilities, the 1303 can display a large brightness range, encompassing log formats and other expanded-range picture styles. The 1500 cd/m², daylight-viewable, 1920x1080 Full HD resolution display panel can be driven by one of two SDI inputs or an HDMI input. Each input has a loop output for connecting other gear in-line without the need for a splitter. All functionality of this monitor is accessed via the innovative Page Builder OS. By implementing full aluminum construction and the provision for separately available user-replaceable polycarbonate screen protectors, SmallHD built this monitor to survive the rigors of production in studios and in the field.

Clarity that produces certainty

The display size, resolution, and pixel density of the 1303 production monitor make it an invaluable tool for precision focus pulling. When you don't have the time or proper measurements, a razor-sharp, low latency display will help you hit your marks.

Calibrated for collaboration

Preview what you're sending downstream using the Output Preview Page, while utilizing software features like customizable focus assist and peaking on your 1303 monitor. If it's the only monitor near by, its color accuracy (100% REC 709) and broad viewing angle make it easy to share with clients and directors.

Can you see me now? Good

With a panel roughly 3x brighter than most production monitors, the 1303 is not restrained by ambient light. Its optically bonded LCD combats glare and sunlight, allowing you to pull focus in less than ideal shooting environments.

Proper power option

Power options for the 1303 monitor are simple and convenient. The 2-pin LEMO out allows for a seamless integration with accessories such as the Teradek Bolt wireless receiver.

Travel made easy: carry-on accessories

All SmallHD® production monitors are equipped with the Rapid Rail Mounting System; the simplest way to connect, store, and travel with critical monitor accessories.

Smooth is fast

Transitioning from table to C-Stand happens safely and securely with the 1303's VESA compatible mounting accessory.

Boldly go

The 1303 monitor is the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1303 will boldly go where no other production monitor has ever gone before.

Specifications

Display

Panel Type	IPS
Size Diagonal	13
Resolution	1920x1080
Pixel Density (PPI)	170 PPI
Aspect Ratio	16:9
Active Area	11.59” x 6.52”
Brightness	1500 nits
Contrast	1140:1
Color Gamut	100% Rec.709
Color Depth	10 bit
Viewing Angle	178 Deg.
Backlight Type	LED
Adjustable Backlight	Yes
Temperature Adaptive Color	No

Input Signal Types/Formats

3G-SDI	YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI	YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI	480i29.97, 576i25
HDMI	Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component	Not Supported
Composite	Not Supported
Audio	HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels

Output Signal Types/Formats

3G-SDI	YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
HD-SDI	YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
SD-SDI	Not Supported
HDMI	Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
Component	Not Supported
Composite	Not Supported
Audio	Audio sent downstream unless a LUT is loaded on the output page which disables Audio out.

Connector Type

SDI	2x 3G Inputs, 2x 3G Outputs
HDMI	1x Input, 1x Output
Component	Not Supported
Composite	Not Supported
Audio	1x Headphone Jack on Front of Monitor
Power In	1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
Power Out	1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
USB	1x Front USB2, 2x Rear USB2

Controls

Primary Control Interface	Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.
Record/Capture	Dedicated Image Capture Button on Front Bezel

Data I/O

Storage	SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades
USB	1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading

Power

Connector Type	1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max
Voltage	12 - 34VDC
Power Consumption	25 - 39W
Recommended Power Supply	AC - DC Power Converter “Brick” Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT
Battery Types	Gold Mount / VMount via 4pin XLR Connector
Output Voltage (VDC)	12V, 2A max via LEMO Connector

Environmental

Compliance	FCC, IC, CE, RoHS
Operating Temperature	32F - 100F
Storage Temperature	33F - 115F
Screen Protection	Acrylic or Anti-Reflective Acrylic screen protetor available as an option
Height	9" (22.86cm)
Width	13" (33.02cm)
Depth/Length	2.88" (7.32cm)
Weight (Item Only without battery)	128oz (3628.74g)
Weight (Packaged)	12lb (5.44kg)
Mount Points	2x ¼”-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor

Software

Pixel Zoom (type)	2x & 4x Zoom with smooth pan via joystick
Frame Guides	Yes: Preset Aspect Ratios & Customizable
DSLR Scale	Canon 5DMkii & Canon 7D
Custom Scale	Yes: Underscan & Overscan
Anamorphic De-Squeeze	Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)	Yes - Automatic or Manual
Image Flip (Manual/Automatic)	Yes - Automatic or Manual
Cross Conversion	Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors)	Yes User Adjustable Color and Intensity
Peaking	Yes User Adjustable Intensity
False Color	Yes Rainbow & Arri Style
Zebra	Yes Dual User Configurable
Waveform	Yes Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope	Yes - with Optional Skintone line
RGB Parade	Yes Fully User Customizable
Histogram	Yes Luma & RGB Style
Image Capture	Yes With Dedicated Button
Custom LUTS	Yes Loadable by Page or as Systemwide Color Calibration
LUT Downstream	Yes Available on SDI 1 or HDMI Out
LUT Import	Via SD Card or USB storage device
Image Overlay	Yes with Intensity Slider and Blink Setting
Firmware	User Upgradable. Compatible with 1303-1703-2403-3203 Firmware Version 1.1 and later
Audio Meters	Yes HDMI & SDI up to 8 channel
