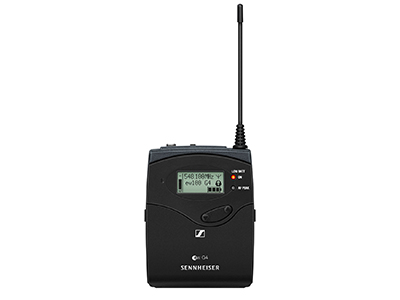

Sennheiser SK 100 G4 Wireless Bodypack Transmitter (AS: 520 - 558 MHz)

Code: SEN/509555

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

This item is currently out of stock.

Enquire Now

What's In The Box?

1x SK 100 G4 bodypack transmitter

2x AA batteries

1x quick guide

1x safety guide

1x manufacturer declaration sheet

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

Robust bodypack transmitter for daily use on stage.
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Specifications
Frequency range	AS: 520 - 558 MHz
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight (incl. batteries)	approx. 160 g
Signal-to-noise ratio	≥ 110 dBA
RF output power	Max. 30 mW
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Input impedance	40 kΩ, unbalanced / 1 MΩ
Max. Input voltage	3 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response	Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm
