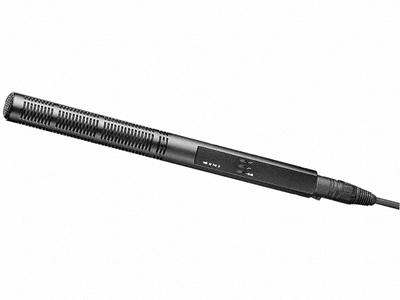

Sennheiser MKH 60-1 Microphone

Code: SEN/003148

Lightweight short gun microphone. Versatile and easy to handle. Excellent for film and reporting applications. Superb lateral sound muting. High degree of directivity ensures high sound quality for distance applications.

For purchasing information

Enquire Now

Overview
Specifications

What's In The Box?

1x MKH 60
1x MZQ 40 quick release clamp

The MKH 60 is a lightweight short gun microphone. It is versatile and easy to handle and its superb lateral sound muting makes it an excellent choice for film and reporting applications. Its high degree of directivity ensures high sound quality for distance applications.

Features

Extremely low inherent self-noise
High sensitivity
High directivity throughout the whole frequency range
Transformerless and fully floating balanced output
Infra-sonic cut-off filter
Symmetrical transducer technology ensures extremely low distortion
Switchable pre-attenuation, switchable roll-off filter and switchable treble emphasis
Rugged and weather-proof
Black, anodised light metal body

Dimensions	Ø 25 x 280 mm
Frequency response (Microphone)	50 - 20000 Hz
Transducer principle (Microphone)	RF condenser microphone
Weight	150
Pick-up pattern	super-cardioid/lobar
Sensitivity in free field, no load (1kHz)	40 (12,5) mV/Pa
Nominal impedance	150 Ω
Min. terminating impedance	1000 Ω
Equivalent noise level	8 (15) dB
Equivalent noise level weighted as per CCIR 468-3	18 (26) dB
Maximum sound pressure level (passive)	125 (134) dB / 1kHz
Power supply	48 +- 4 V Phantom
Current consumption	2 mA
