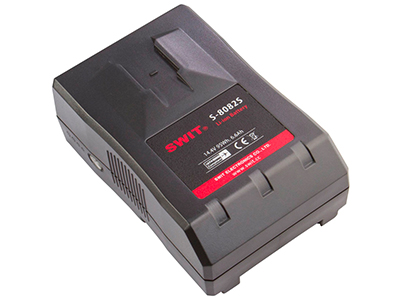

SWIT S-8082S 95Wh V-Mount Battery

Code: SWI/S-8082S

S-8082S is a lightweight 95Wh V-mount battery, with a D-tap socket for camera light or other equipments. It has a 4-level LED indicator to give the user a view of remaining power before mounting to camera.

For purchasing information

Enquire Now

Overview
Specifications

Note: Lemac recommends using Swit Chargers with genuine Swit batteries. If you are unsure about compatibility please get in touch and our sales team can help.

V-mount Camera Battery

Compact design, smaller in size

S-8083S is the V-mount rechargeable Li-ion battery pack for professional video cameras. It’s compact design is smaller in size than S-8080S.

Reliable V-mount Connection

S-8082S utilises high quality metal V-wedge that ensures the reliable mounting.

4-level LED Power Indicator

The S-8082S features 4 LED power indicators to check the battery remaining capacity, so that you can get a quick view of capacity anytime.

95Wh / 6.6Ah Capacity

The S-8083S is made up of 12pcs 18650 battery cells, and reaches 95Wh / 6.6Ah capacity, giving it an approx. run time of 3 hours for normal 30W ENG cameras.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8082S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 70W, 6A.

Key Features

Li-ion battery, no memory effect
14.4V, 95Wh large capacity
D-tap output socket
4-level LED power indicator
Metal V-mount plate
Wireless receiver mount
Safe air transportation

Specifications

Voltage	14.4V
Capacity	95Wh
Max Output Power	50W
Max Output Current	3.5A
Over Current Protection	5A
Mount Type	V-mount
Operation temperature	0- 40°c
Net Weight	Approx 0.76kg
Dimension	134x88x52mm
