SWIT S-4020 Power Station Box
Code: SWI/S-4020

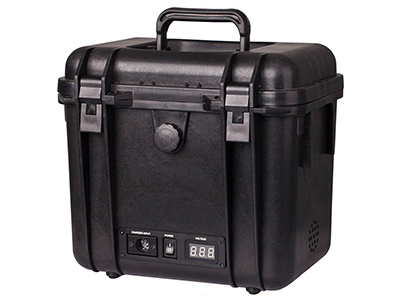

Providing long-lasting power solution for high draw devices, the S-4020 power station box holds 4 V-mount batteries in a portable and durable PP+ Fibre glass case
Output: 11-16.8VDC, 15A (180W) or 22-33.6VDC, 15
For purchasing information
Enquire Now
Long-lasting power solution for high draw devices
The S-4020 power station box can install 4 V-mount batteries to provide more power and longer power supply time compared to a single Li-ion battery, perfect for film, television and mobile studios.
Auto-balanced circuit design
With auto-balanced circuit, S-4020 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output.

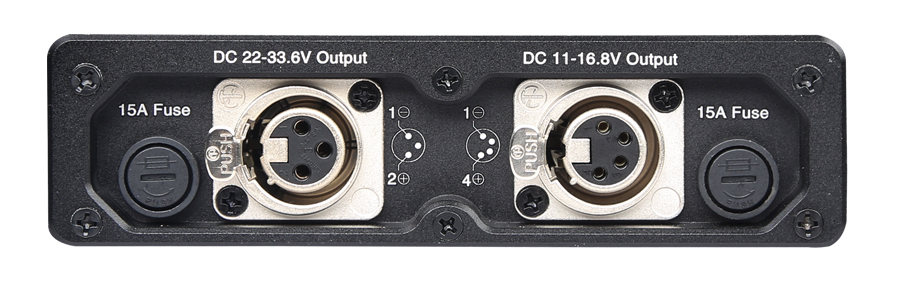

2-ch 4-pin XLR DC output
Select either 4-pin 11-16.8V XLR output or 3-pin XLR 22-33.6V - 15A max - DC output with multiple circuit protections, (overload, over voltage etc.) built into the design.
Charging/discharging time
With 4 fully discharged 160wh batteries, S-4020 will take around 11.5 hours to fully charge these batteries with the supplied power adaptor.
With 4 fully charged 160wh batteries, the S-4020 can power an 85W camera for around 7.5hours.

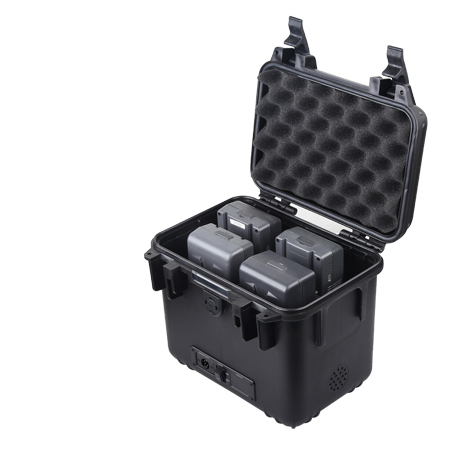

Power with 4 V-lock batteries, portable and usable
Considering the size, weight, power effeciency, and usability, S-4020 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find.

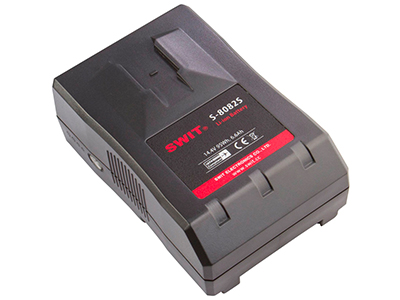

The following SWIT V-mount batteries will fit in the box:
S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.

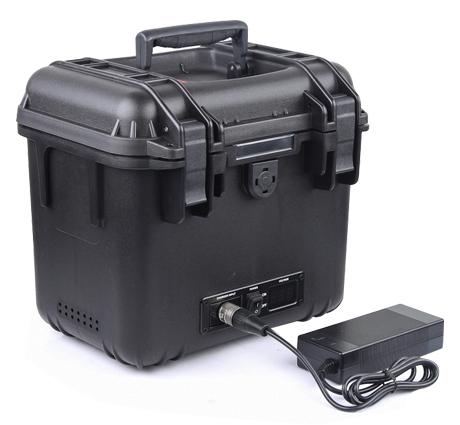

Charging without taking out batteries
With the supplied 5A charger, you can charge batteries in the S-4020 directly, without taking them out.
Cooling fan design
The built-in fan dissipates heat from the box, making it safe when working in high temperature environment.

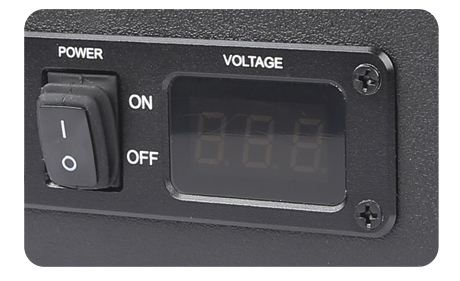

LED panel display status
With an LED panel, S-4020 can display real-time voltage. When battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batterie.
Specifications
Input |
DC 16.8V 5A (Charging) |
Output |
DC 11-16.8V 15Ax2(180Wx2)
|
Working temperature: |
0°C~+40°C |
Working humidity: |
10%~90% |
Storage temperature: |
-15℃~﹢60℃ |
Dimensions |
290mm x 221mm x 278mm |
Net weight |
3.45Kg |
