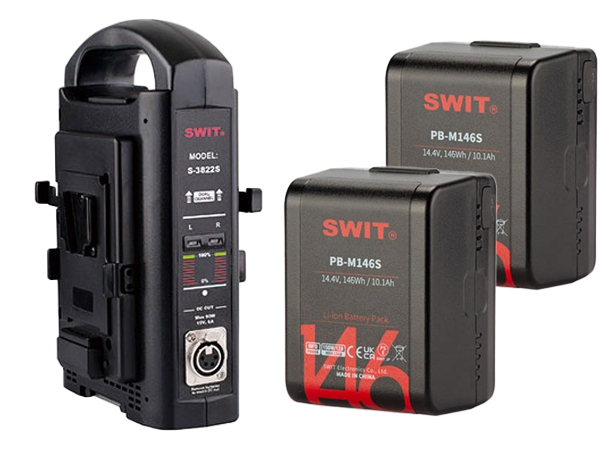

SWIT PB-M146S 146Wh Pocket V-Lock Fast Charge Battery Bundle

Code: BUN/SBB7

On Sale!

$1,140.91
$1,190.00
12% Savings

The PB-M146S provides a larger capacity of 146Wh to extend run time while maintaining a tiny size for convenient carrying.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when SWIT PB-M146S 146Wh Pocket V-Lock Fast Charge Battery Bundle is back in stock.

What's In The Box?

  • 2x SWI/PB-M146S 140Wh Batteries
  • 1x SWI/S-3822S Charger
  • As a new member of the PB-M series Pocket V-Lock batteries, the PB-M146S provides a larger capacity of 146Wh to extend run time while maintaining a tiny size for convenient carrying.

    The PB-M146S has a nominal voltage of 14.4V, a large capacity of 146Wh, and a 5-step LED power indicator. It also features a built-in D-tap DC output and charging input, as well as a USB-A 5V/2A power output. The constant load is 150W, 12A.

    Hot-Swap Adapter

    You can use 2x PB-M146S hot-swappable batteries on cameras with the Hot-swap Adapter KA-M20S to get one-by-one hot-swap uninterrupted power, equivalent to a standard size V-Lock battery.

    50W/3A Fast Charging

    The PB-M146S can be charged by all standard V-Lock chargers and D-tap chargers.

    Wire-Free Internal Tech

    The PB-M146S features innovative "Wire-Free" internal technology, with all the cells, D-tap, USB, and power indicator devices directly soldered onto the PCB without connecting wires. This reduces internal resistance effectively and makes the circuit stable, safe, and reliable.

    SWIT S-3822S V-Lock Charger/AC Adaptor

    S-3822S is a portable 2-channel simultaneous (up to 2 batteries at a time) charger for V-Lock batteries

    AC-DC Adapting Output

    The S-3822S can also be used as an AC-DC adaptor with an output of 14.4V DC, 5A, 72W through its 4-pin XLR DC output.

    Please note: the AC-DC adapting output will not work when battery is charging.

    Key Features

    • V-Lock battery charger
    • 2-ch simultaneous charging
    • 3A charging current per channel
    • LED charging indicators
    • Support AC to 4-pin XLR output
    • Light weight and portable
    Battery
    Battery plate V-Lock
    Nominal voltage 14.4V
    Capacity 146Wh, 10.1Ah
    Power output In total: 150W
    Electrodes: 150W, 12A
    USB: 10W, 5V/2A
    D-tap: 100W / 10A
    Charging input 16.8V 3A (Max)
    Charging Temperature 0-40°C
    Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
    Dimension 100×74×63.7mm
    Net weight Net 0.72kg; With package 0.75kg
    Charger
    Input AC 100V-240V 50/60Hz
    Power consumption Max 136W
    Charging output DC 16.8V, 3Ax2-ch
    Adapting output DC 14.4V, 5A
    Working temperature 0°C ~ +40°C
    Working humidity 10% ~ 90%
    Dimension 228×140×120mm
    Weight Approx. 1.0kg
